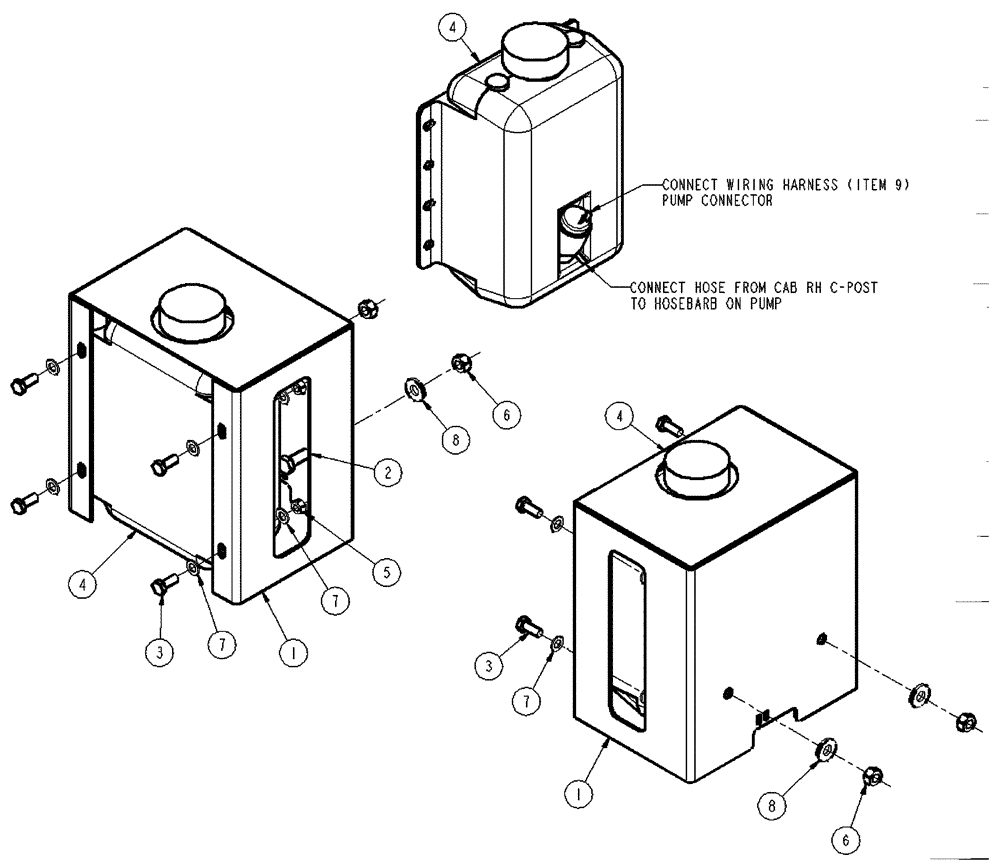

Запчасти Case IH SPX4410 (02-010) - WINDSHIELD WASHER GROUP Cab Exterior

BN309265

CABLE

Tie

1шт.

1

BN324504

BRACKET

Mount, Washer Bottle

1шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

87014923

RESERVOIR, WINDSHIEL

12V, With Pump

1шт.

87439461

CAP

Washer Bottle, Vented With Tether

1шт.

Service Parts For Ref. 4

1шт.

BN98901

PUMP

12V. electric

1шт.

Service Parts For Ref. 4

1шт.

5

86528579

NUT,M8 x 1.25

4шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

8

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.
