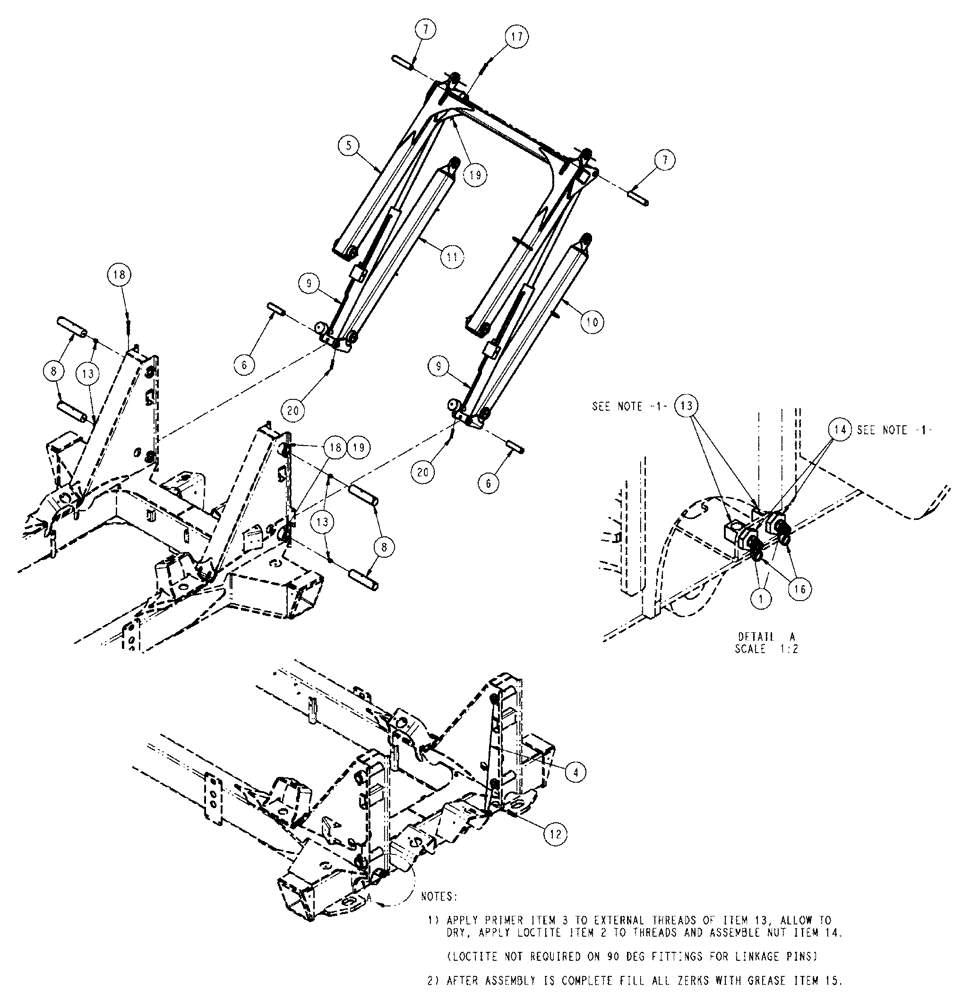

Запчасти Case IH SPX4410 (11-045) - REMOTE GREASE BOOM HITCH Options

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

4

BN316482

HOSE,0.13" ID x 40.00", SAE 100R7

Grease, 1/8" X 40"

2шт.

5

NS

NOT SERVICED

Link Group, Upper

1шт.

See Fig. 04-001

1шт.

6

BN321135

PIN

2шт.

7

343874A1

PIN

2шт.

8

343354A1

PIN

Boom Hitch, 2"

4шт.

9

87267881

CYLINDER

Group, Para-Links

2шт.

See Fig. 07-008

1шт.

10

NS

NOT SERVICED

Link Group, Lower LH

1шт.

See Fig. 04-003

1шт.

11

NS

NOT SERVICED

Link Group, Lower RH

1шт.

See Fig. 04-002

1шт.

12

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

13

BN53569

ELBOW

Grease, 1/8 NPT BH90

8шт.

14

BN53570

BHD LOCK NUT

4шт.

15

331-37

SPARE PART

FLUID, 1 lb. Lithium #2 grease

1шт.

16

BN69951

CAP

Grease

4шт.

17

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10-1.5 X 70, 8.8, DOR

2шт.

18

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

20

838-3860

LOCK PIN,M8 x 60, Slotted

2шт.
