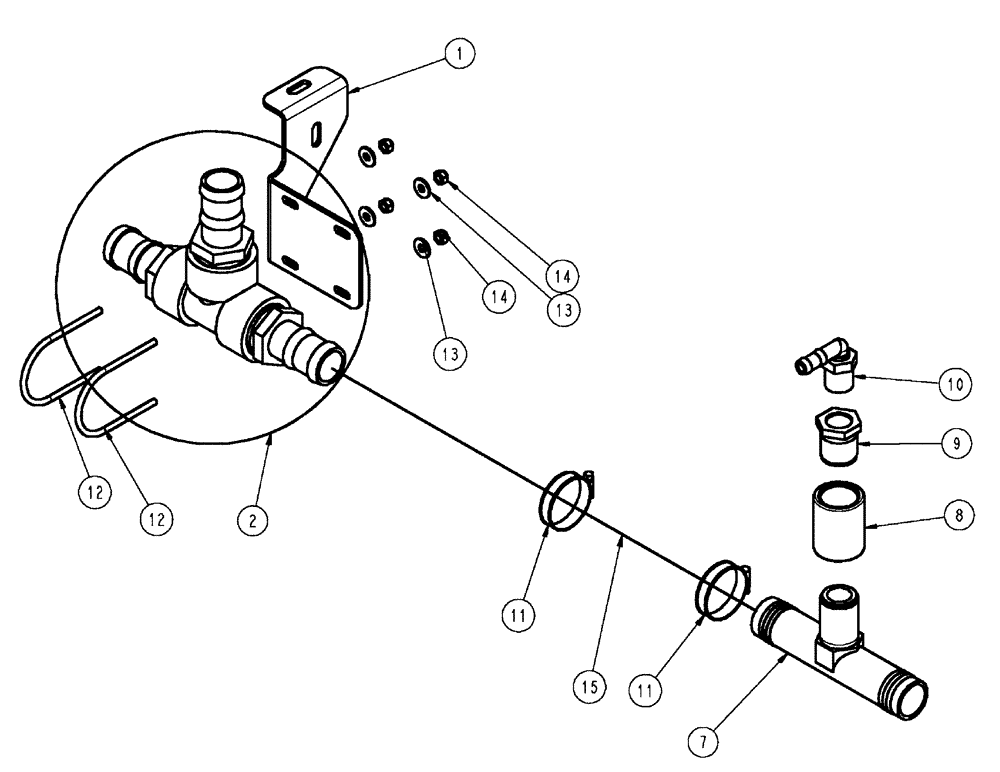

Запчасти Case IH SPX4410 (11-043) - CHEMICAL INDUCTOR TEE GROUP Options

1

BN320728

BRACKET

Inductor Tee

1шт.

2

87270968

VENTURI

assembly

1шт.

See Fig. 11-044

1шт.

2

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN309960

INSERT

Inductor Venturi

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

7

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

1шт.

8

BN66968

COUPLING

1" Poly

1шт.

9

BN53665

BUSHING

1" x .75 Poly

1шт.

10

BN73578

FITTING

Barb, 3/4NPT X 1/2HB, 90

1шт.

11

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

12

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

13

BN50138

WASHER,1/4", SS

4шт.

14

BN55359

LOCK NUT,1/4"-20, SS

4шт.

15

BN324833

HOSE

Kanaflex

1шт.
