Запчасти Case IH SPX4410 (11-034) - FOAMER STATION GROUP Options

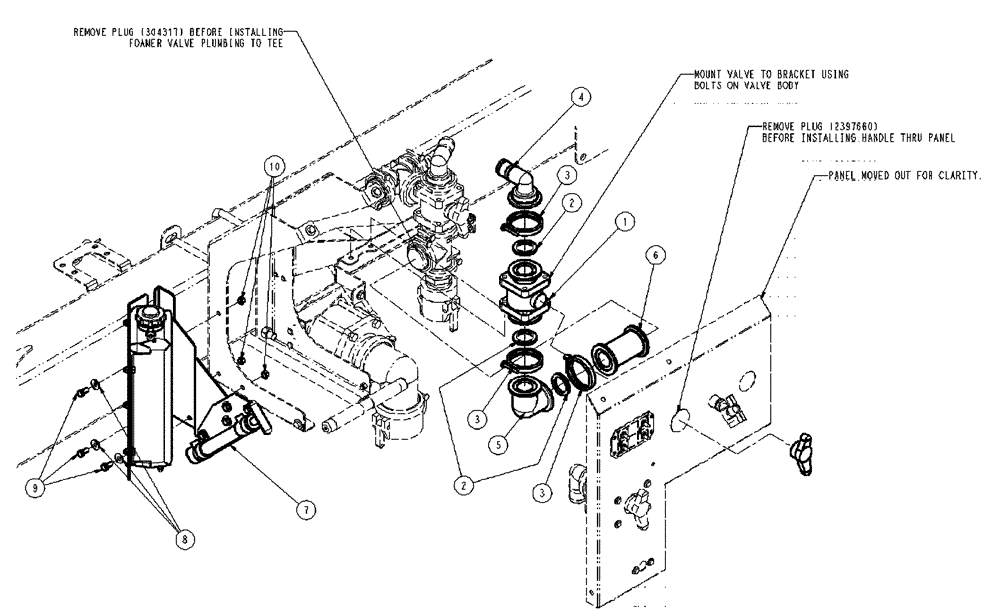

Схема запчастей Case IH SPX4410 - (11-034) - FOAMER STATION GROUP Options
8
3
9
2
3
3
2
1
10
7
6
4
5

Артикул

Название

Примечание

Количество

1

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, W/T Handle

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

4

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

5

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

6

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

1шт.

7

NS

NOT SERVICED

Foamer, Station Group 778D

1шт.

See Fig. 11-035

1шт.

8

BN50146

WASHER,3/8", Stainless

3шт.

9

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

3шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

Выбрано товаров: 11
