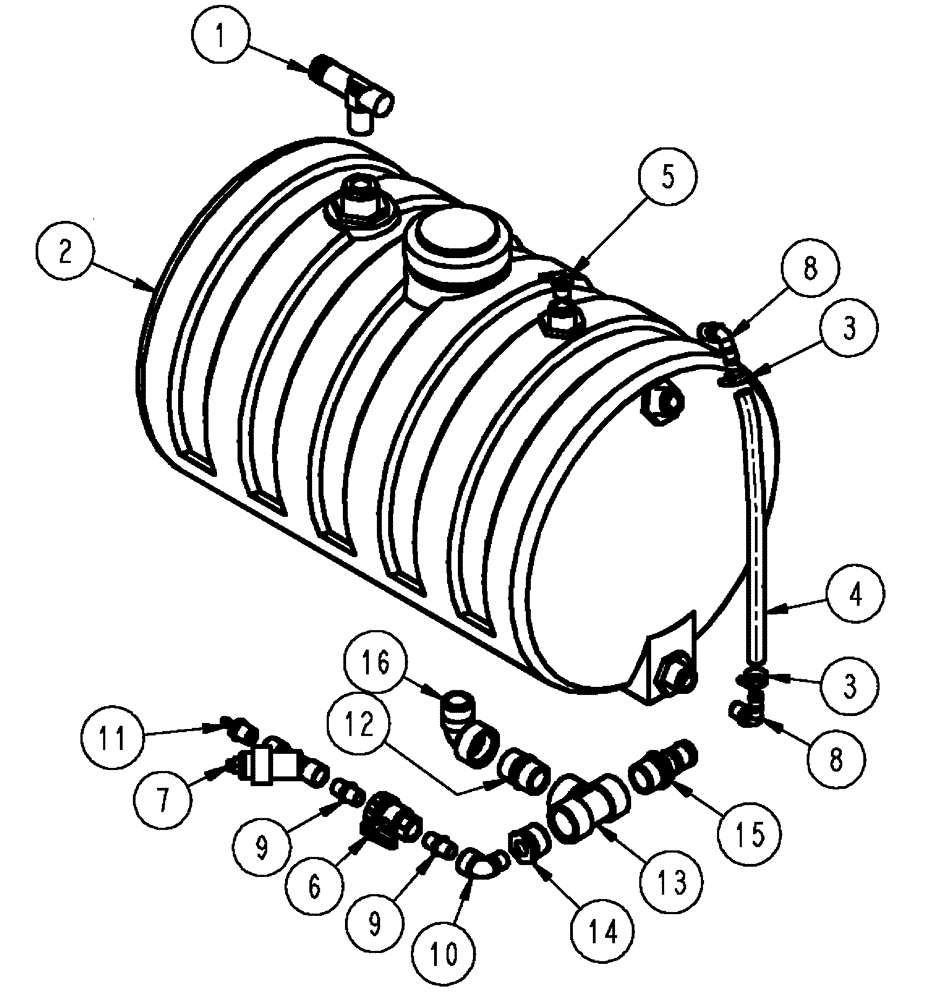

Запчасти Case IH SPX4410 (11-030) - FOAMER TANK PLUMBING GROUP Options

1

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 1/2" Hose Barb, Poly, Start Serial: 6421

1шт.

1

87265598

FITTING

90, 1.0MP X 1.50HB/.25FP

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

87270475

TANK

55 Gallon, With Fittings, Start Serial: 6421

1шт.

2

87265599

TANK

55 Gallon, With Bulkheads

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

4

BN319020

HOSE,0.75" ID x 21.00"

Clear Vinyl

1шт.

5

87265956

FITTING,3/8" Hose Barb x 3/4" Male NPT, Poly

3/8" Hose Barb X 3/4" NPT, Poly, Start Serial: 6421

1шт.

5

BN325317

FITTING

Hose Barb, 1/4" MPT x 3/8" 90º

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

BN324588

VALVE

Ball 3/4" SU Poly

1шт.

7

BN324892

FILTER STRAINER,3/4" x 3/4" Y Strainer

3/4" "Y" 40 Mesh

1шт.

8

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

9

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

10

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

11

343436A1

PIPE FITTING,3/4" Male Thread x 3/8" Hose Barb

3/4" MPT X 3/8" Hose Barb, Poly

1шт.

12

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

13

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

14

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

15

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

16

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.
