Запчасти Case IH SPX4410 (11-023) - FOAMER, 60-80’ RIGHT DROP GROUP Options

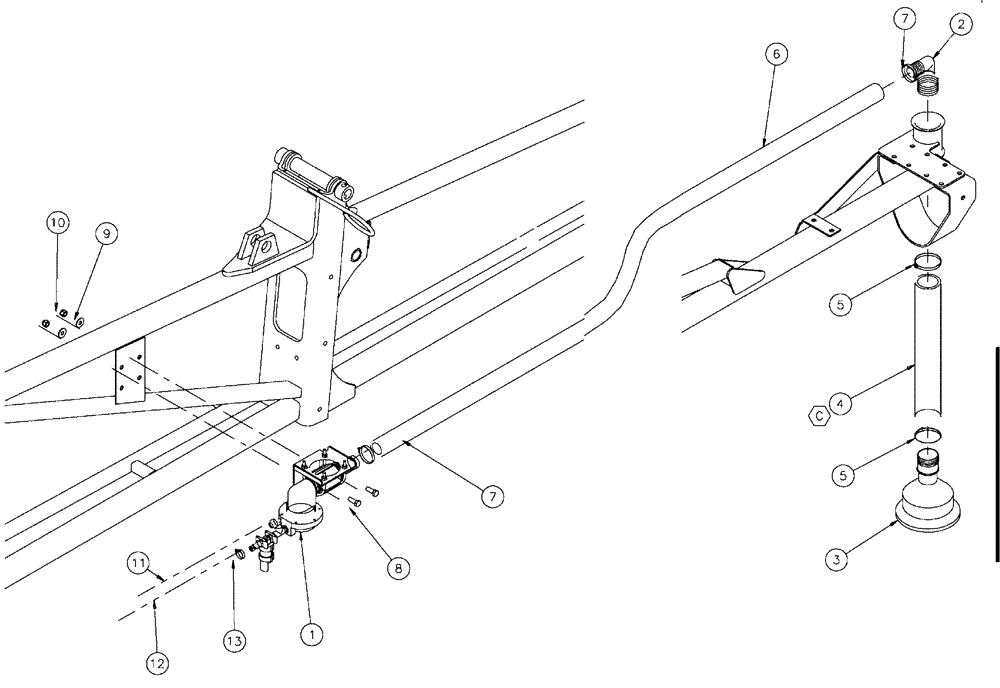

Схема запчастей Case IH SPX4410 - (11-023) - FOAMER, 60-80’ RIGHT DROP GROUP Options
1
7
5
4
9
7
5
2
3
10
8
6
12
13
11

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Chamber Group, RH Foam Mix

1шт.

See Fig. 11-028

1шт.

2

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

3

BN2403252

BELL

Foam Marker

1шт.

4

BN310941

HOSE,2.00" ID x 16.00"

Drop

1шт.

5

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

6

BN322098

HOSE,1.25" ID x 161.00"

Type K

1шт.

7

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

342680A1

TUBE

Synflex, 3/8" X 30.5'

1шт.

12

342681A1

HOSE

1/2" x 30.5' EPDM

1шт.

13

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

Выбрано товаров: 14
