Запчасти Case IH SPX4410 (11-019) - TURBO FOAMER TANK GROUP Options

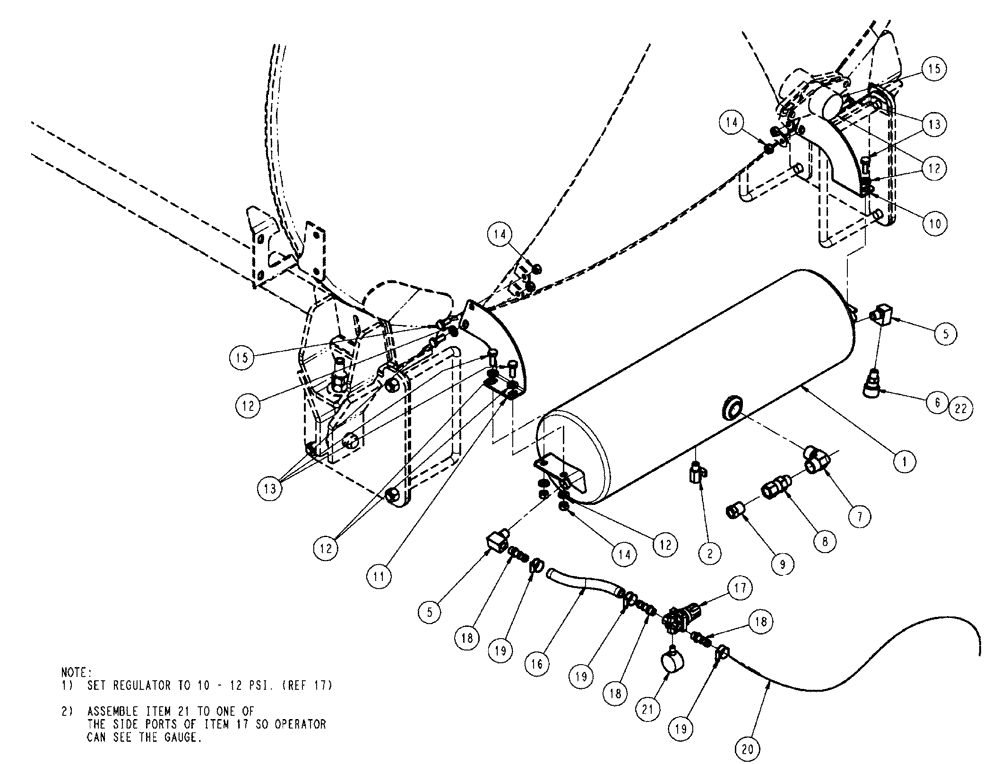

Схема запчастей Case IH SPX4410 - (11-019) - TURBO FOAMER TANK GROUP Options
22
12
6
12
16
5
7
2
1
17
18
8
14
14
15
19
13
13
5
12
18
14
12
20
19
11
10
19
21
18
15
9

Артикул

Название

Примечание

Количество

1

BN316553

AIR TANK

8" DIA. X 32"

1шт.

2

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

3

BN324303

LUBE NIPPLE

Red-3/8 X 1/4NPT SS

2шт.

4

BN73015

COUPLING

1/4" NPT SS Full

2шт.

5

BN73017

ELBOW

90 Street-1/4" SS

2шт.

6

BN2393326

COUPLING

B32

1шт.

7

BN319011

FITTING

NPT-12M-8F90 Degre

1шт.

8

BN2295247

CHECK VALVE

Air #5003980

1шт.

9

BN51102

FITTING

Adapter, 1/2NPT X 3/8NPT, STL

1шт.

10

342620A1

MOUNTING PLATE

Air Tank, RH

1шт.

11

342621A1

MOUNTING PLATE

Air Tank, LH

1шт.

12

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

10шт.

13

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

16

BN317965

HOSE,12.70 mm ID x 203.00 mm

Drain, Oil

1шт.

17

87388151

REGULATOR

Air Pressure

1шт.

18

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

3шт.

19

BN324022

HOSE CLAMP

#8, Stainless Steel

3шт.

20

344408A1

HOSE

1/2" X 214" EPDM

1шт.

20

BN324024

HOSE,0.50" ID x 220.00"

EPDM

1шт.

21

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

22

87267960

COVER

dust, air chuck

1шт.

Выбрано товаров: 23
