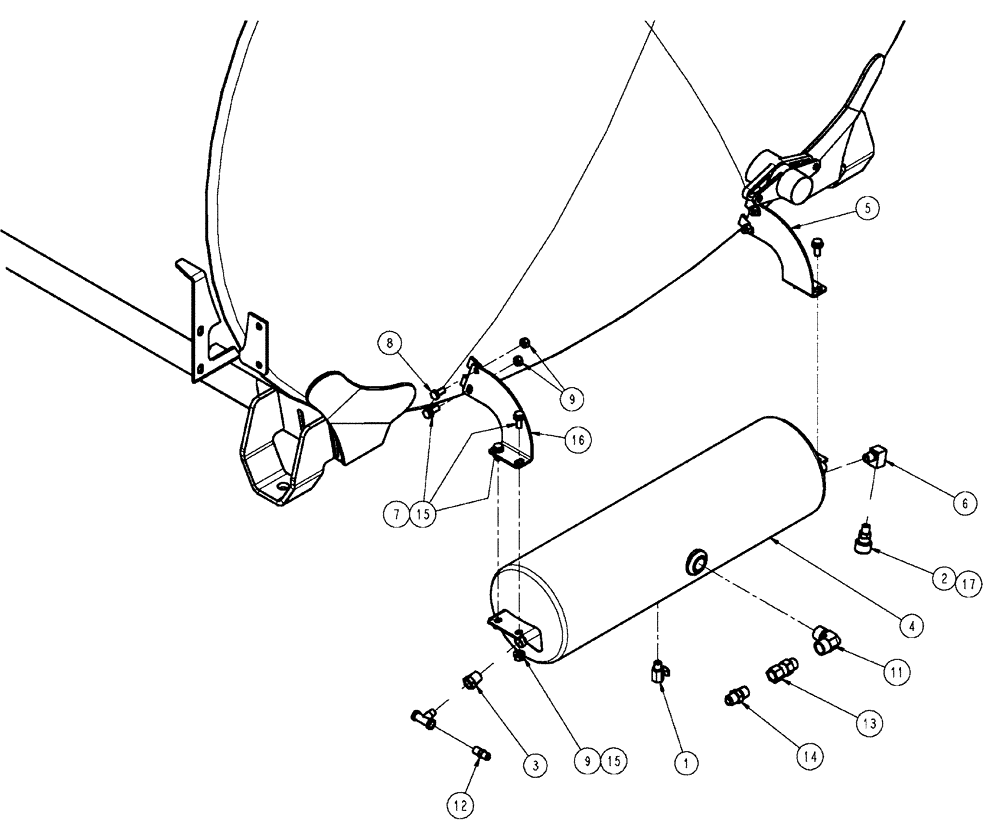

Запчасти Case IH SPX4410 (11-018) - AIR TANK GROUP Options

1

BN2292239

DRAINCOCK/TAP SUPPLY

Bw103385

1шт.

2

BN2393326

COUPLING

B32

1шт.

3

BN324303

LUBE NIPPLE

Red-3/8 X 1/4NPT SS

2шт.

4

BN316553

AIR TANK

8" DIA. X 32"

1шт.

5

342620A1

MOUNTING PLATE

Air Tank, RH

1шт.

6

BN73017

ELBOW

90 Street-1/4" SS

1шт.

7

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

10

BN73015

COUPLING

1/4" NPT SS Full

2шт.

11

BN319011

FITTING

Npt -12M-8F 90 Degree

1шт.

12

BN2290181

FITTING

0103-4-4

1шт.

12

BN2290174

FITTING

0103-4-6

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

13

BN2295247

CHECK VALVE

Air #5003980

1шт.

14

BN316060

FITTING

10MJ-8MP

1шт.

15

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

10шт.

16

342621A1

MOUNTING PLATE

Air Tank, LH

1шт.

17

87267960

COVER

dust, air chuck

1шт.
