Запчасти Case IH SPX4410 (11-013) - FENCE ROW GROUP, 100’ LO-FLOW Options

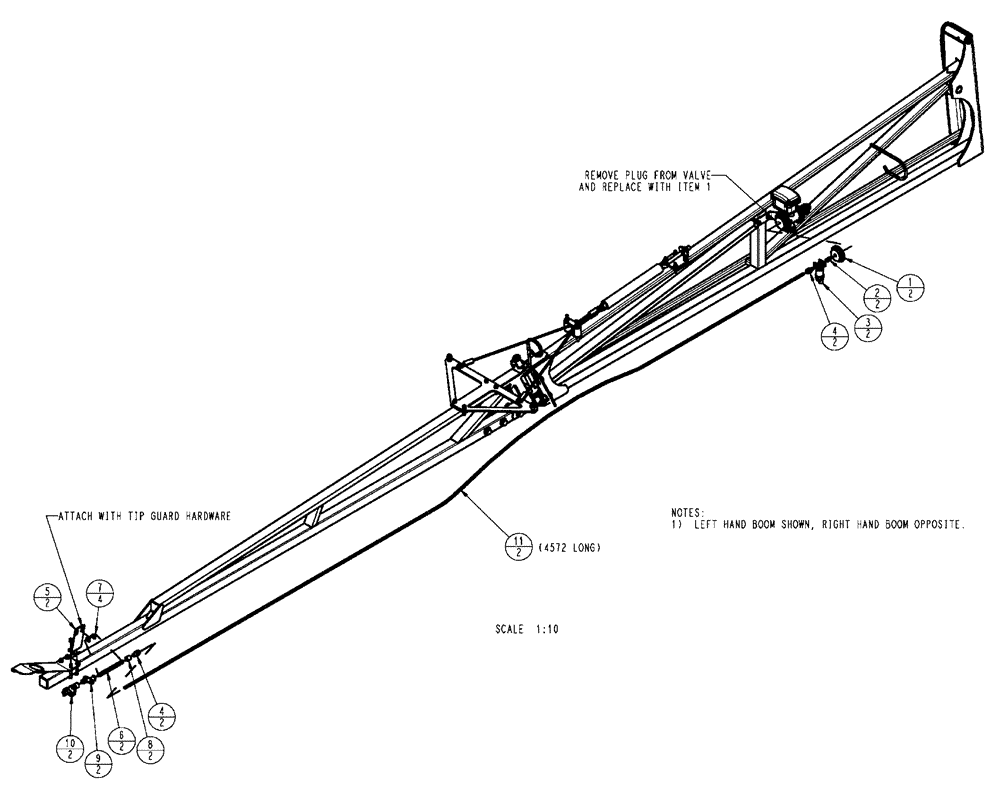

Схема запчастей Case IH SPX4410 - (11-013) - FENCE ROW GROUP, 100’ LO-FLOW Options
9
10
7
2
8
6
4
4
1
3
5
11

Артикул

Название

Примечание

Количество

1

87265461

PLUG

2" Flange X 1/4" FP

2шт.

2

BN1420036

NIPPLE

1/4" Close SS

2шт.

3

343778A1

SOLENOID

valve, 1/4" NPT

2шт.

4

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

4шт.

5

87380590

MOUNTING PLATE

Nozzle, Fence Row

2шт.

6

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

2шт.

7

BN324022

HOSE CLAMP

##8, Stainless Steel

4шт.

8

BN73015

COUPLING

1/4" NPT SS Full

2шт.

9

BN313256

NOZZLE INJECTION

W/Swivel

2шт.

10

BN313255

NOZZLE INJECTION

W/Check Valve

2шт.

10a

BN74619

CAP

Service Part for Ref 10

1шт.

11

BN2292088

AIR INTAKE TUBE

3/8" Black

30шт.

10b

BN69558

PLUG

Service Part for Ref 10

1шт.

12

NS

NOT SERVICED

Electrical Group, Fence Row

1шт.

See Fig. 12-021

1шт.

Выбрано товаров: 15
