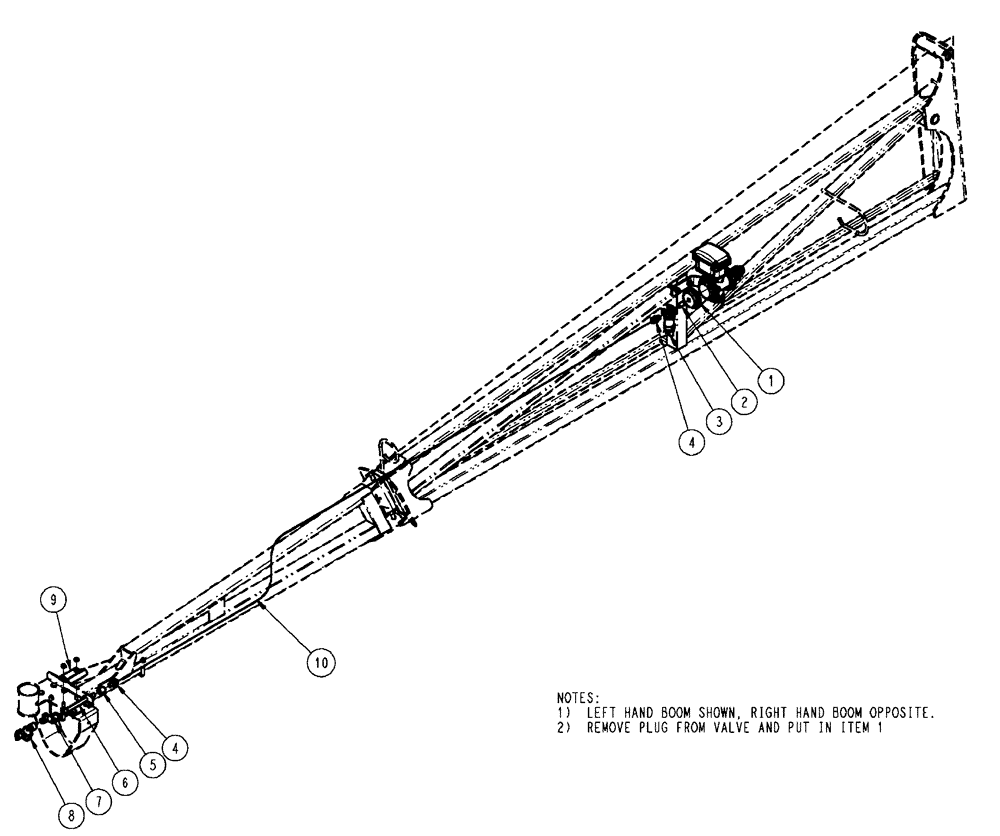

Запчасти Case IH SPX4410 (11-011) - NOZZLE, FENCE ROW, 90’, LO-FLOW Options

0

BN24224

HARNESS

Center Boom

2шт.

0

NS

NOT SERVICED

Switch, Fence Row

1шт.

See Fig. 01-028

1шт.

1

87265461

PLUG

2" Flange X 1/4" FP

1шт.

2

BN1420036

NIPPLE

1/4" Close SS

1шт.

3

343778A1

SOLENOID

valve, 1/4" NPT

1шт.

4

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

5

BN73015

COUPLING

1/4" NPT SS Full

1шт.

6

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

1шт.

7

BN313256

NOZZLE INJECTION

W/Swivel

1шт.

8

BN313255

NOZZLE INJECTION

W/Check Valve

1шт.

8a

BN74619

CAP

Service Part for Ref 8

1шт.

8b

BN69558

PLUG

Service Part for Ref 8

1шт.

9

86986105

CLAMP

Plate, Nozzle

1шт.

10

87265540

TUBE,0.375" DIA

Black 3/8 x 120"

1шт.

1010

NS

NOT SERVICED

Electrical Group, Fence Row, LO

1шт.

1010

87270027

HARNESS

Extension, 2 Position

2шт.

Service part for Ref. 1010

1шт.

1010

BN306319

SWITCH

Carling, On Off On, Fence Row

1шт.

Service part for Ref. 1010

1шт.

1010

BN306320

SWITCH

Actuator

1шт.

Service part for Ref. 1010

1шт.
