Запчасти Case IH SPX4410 (09-068) - SPARGE VALVE GROUP Liquid Plumbing

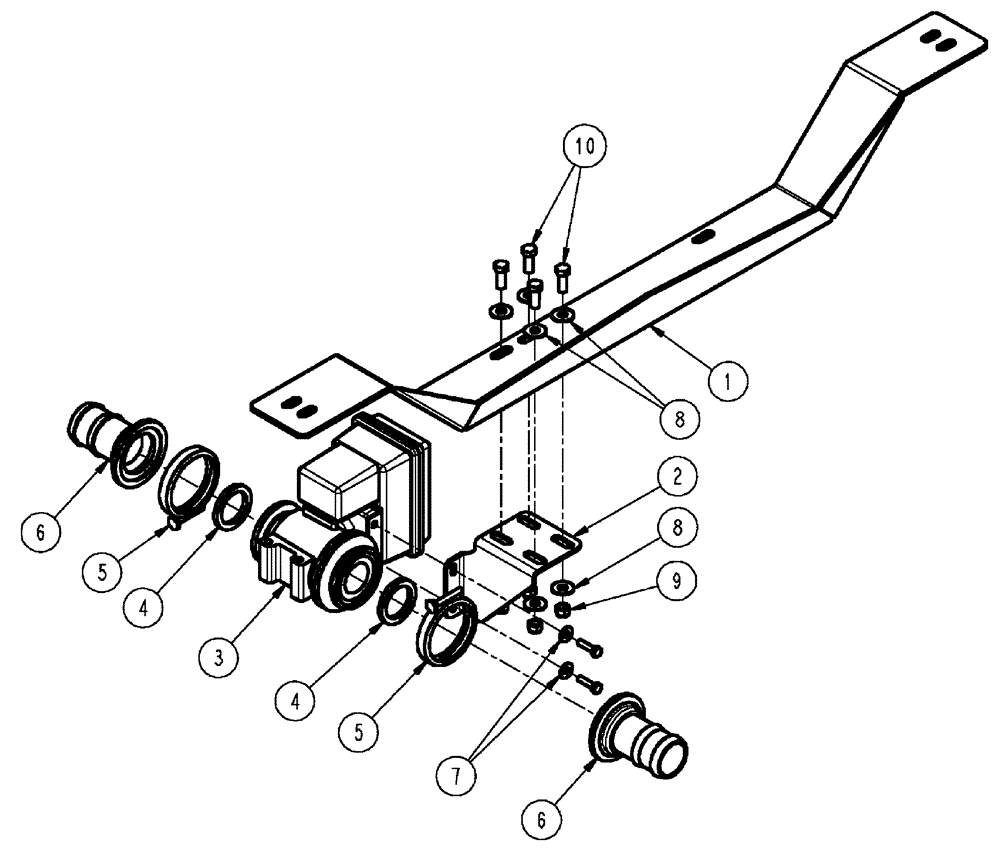

Схема запчастей Case IH SPX4410 - (09-068) - SPARGE VALVE GROUP Liquid Plumbing
4
10
6
4
3
5
1
5
9
8
7
2
6
8

Артикул

Название

Примечание

Количество

1

87268147

BRACKET

Spand, Plumbing

1шт.

2

87268149

BRACKET, SUPPORTING

Mount, Sparge Valve

1шт.

3

87268174

VALVE

1 1/2" Ball, Electric

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

6

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

2шт.

7

BN50138

WASHER,1/4", SS

2шт.

8

BN50146

WASHER,3/8", Stainless

8шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

10

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

Выбрано товаров: 10
