Запчасти Case IH SPX4410 (09-062) - PLUMBING GROUP, UNDER SUMP Liquid Plumbing

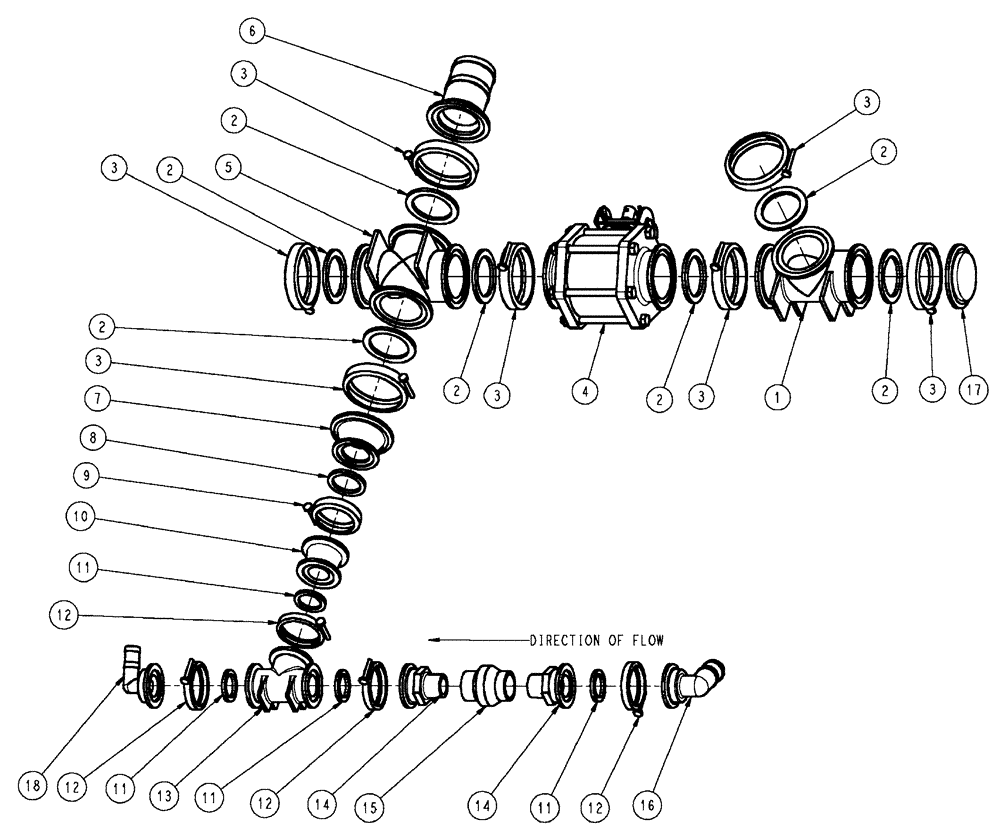

Схема запчастей Case IH SPX4410 - (09-062) - PLUMBING GROUP, UNDER SUMP Liquid Plumbing
11
17
6
1
13
2
2
2
4
11
11
8
14
3
3
14
3
16
10
12
3
9
3
3
2
2
3
2
5
12
18
12
15
11
12
2
7

Артикул

Название

Примечание

Количество

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

2

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

7шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

7шт.

4

BN322929

VALVE

3" Manifold Ball

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

6

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

7

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FP Flange

1шт.

8

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

9

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

10

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange X 2" Flange

1шт.

11

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

12

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

13

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

14

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1.25 Male

2шт.

15

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

16

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

17

BN321079

PLUG,3" Flange

Manifold, 3"

1шт.

18

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

Выбрано товаров: 18
