Запчасти Case IH SPX4410 (09-060) - OPERATION STATION GROUP Liquid Plumbing

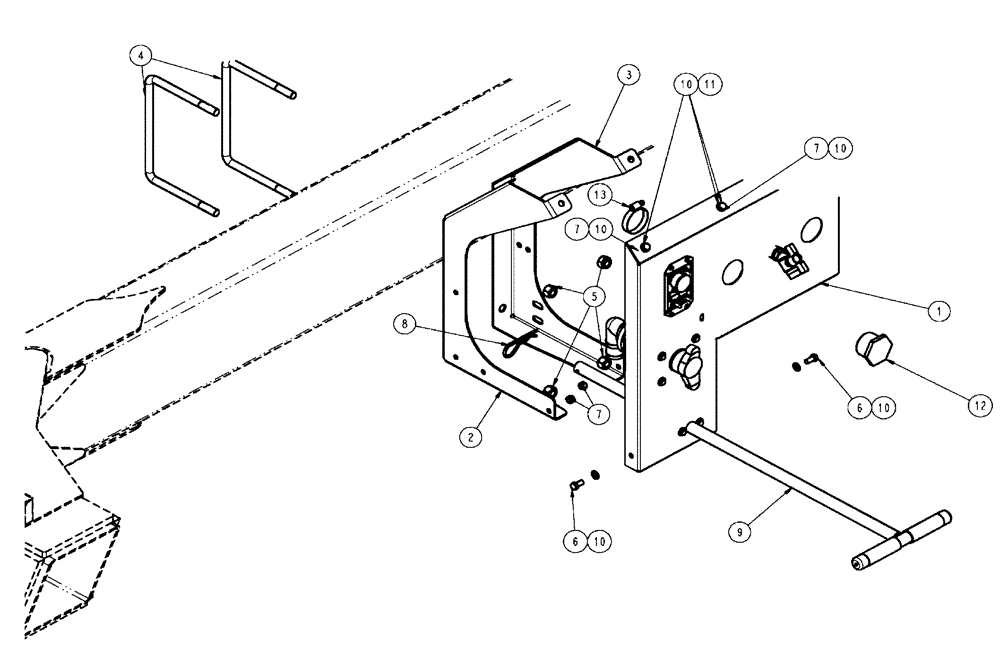

Схема запчастей Case IH SPX4410 - (09-060) - OPERATION STATION GROUP Liquid Plumbing
8
4
7
10
10
9
10
3
12
1
7
13
11
2
10
7
10
6
6
5

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Plate Group, Operation STA 778D

1шт.

See Fig. 09-058

1шт.

2

343414A1

MOUNTING PLATE

operation STA. LH 778D

1шт.

3

343418A1

MOUNTING PLATE

operation STA. RH 778D

1шт.

4

BN325918

U-BOLT

M16 X 256 ID X 187 IL

2шт.

5

832-46416

NUT,M16 x 2, Cl 8

4шт.

6

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

8

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

9

87270634

SPACER

Bushing Plastic

1шт.

10

BN50146

WASHER,3/8", Stainless

6шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

12

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

13

BN76056

HOSE CLAMP

#36

1шт.

Выбрано товаров: 14
