Запчасти Case IH SPX4410 (09-058) - PLATE GROUP, OPERATOR STATION Liquid Plumbing

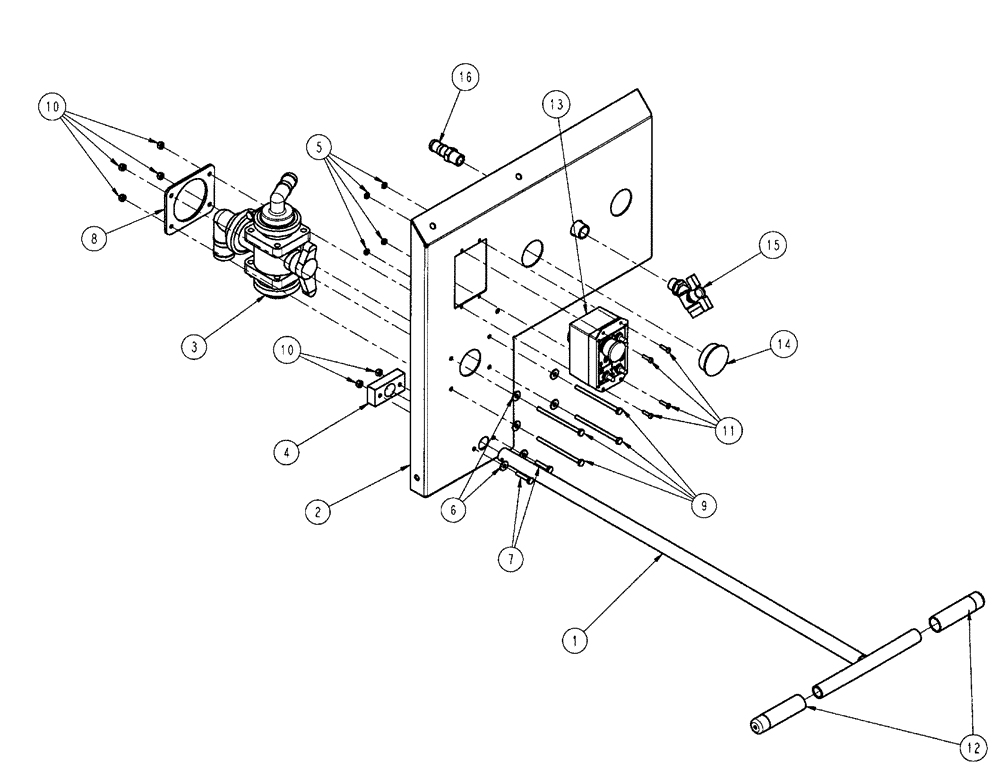

Схема запчастей Case IH SPX4410 - (09-058) - PLATE GROUP, OPERATOR STATION Liquid Plumbing
15
1
8
3
9
16
10
4
6
14
13
5
10
7
11
2
12

Артикул

Название

Примечание

Количество

1

343411A1

HANDLE

3" valve 778D

1шт.

2

344398A1

MOUNTING PLATE

OPER. STA.

1шт.

3

NS

NOT SERVICED

Valve Group, CHEM./Rinse 778D

1шт.

See Fig. 09-059

1шт.

4

BN323177

BUSHING

Valve Handle Extension

1шт.

5

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

6

BN50138

WASHER,1/4", SS

6шт.

7

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

2шт.

8

BN323367

PLATE

Valve Holder

1шт.

9

BN311764

BOLT,Hex, 1/4" - 20 x 4-1/4", SST

1/4"-20 X 4-1/4", Stainless Steel

4шт.

10

BN55359

LOCK NUT,1/4"-20, SS

6шт.

11

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

12

BN323880

GRIP

Handle, 1" ID Vinyl

2шт.

13

87266536

CONTROL UNIT

Remote Station Reload Center

1шт.

See Fig. 09-061

1шт.

14

BN2397660

PLUG

Dash 2" #2403

1шт.

15

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

16

BN322536

ADAPTER,1/2" Male NPT x 3/4" Hose Barb, Poly

1/2" MPT x 3/4" Hose Barb, Poly

1шт.

Выбрано товаров: 18
