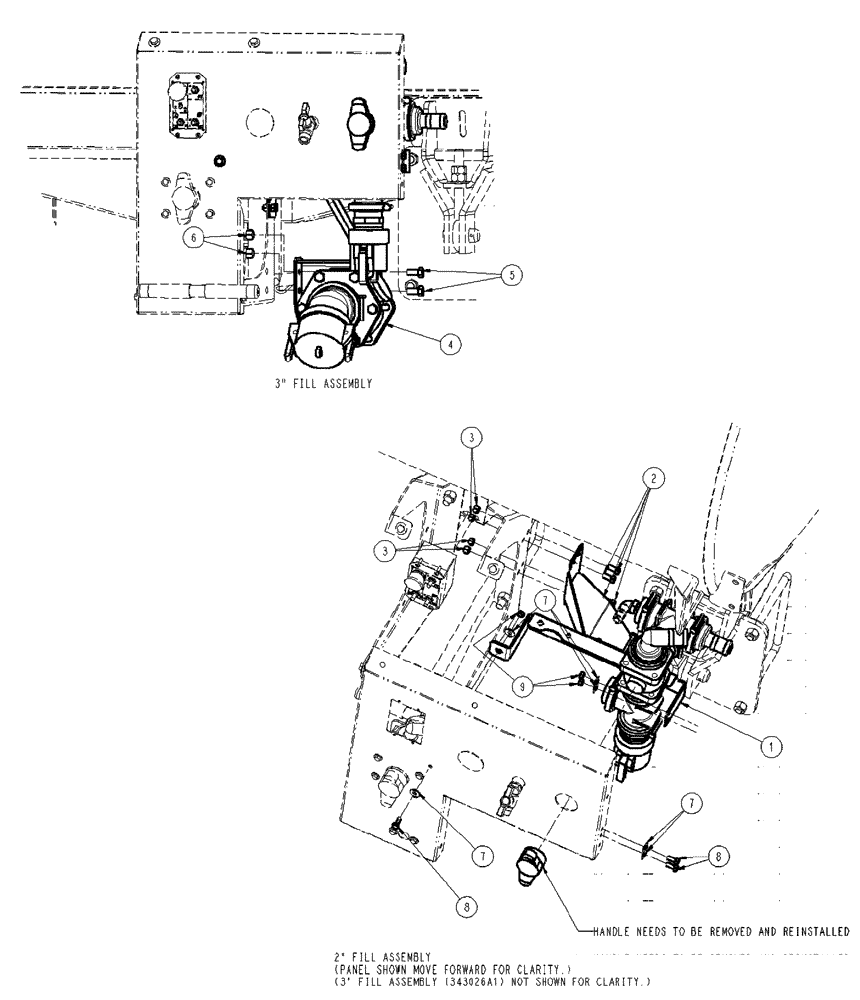

Запчасти Case IH SPX4410 (09-052) - PRESSURE FILL GROUP PLUMBING Liquid Plumbing

1

NS

NOT SERVICED

Fill Group, 2" Rinse 778D

1шт.

See Fig. 09-055

1шт.

2

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

NS

NOT SERVICED

Fill, 3" Pressure 778D

1шт.

See Fig. 09-054

1шт.

5

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

2шт.

6

BN320390

NUT

1/2"-13, TL, G5

2шт.

7

BN50142

WASHER,5/16", Stainless Steel

6шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

3шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.
