Запчасти Case IH SPX4410 (09-050) - NOZZLE SPACING GROUP, 6 SECTION CENTER, 20" OFF Liquid Plumbing

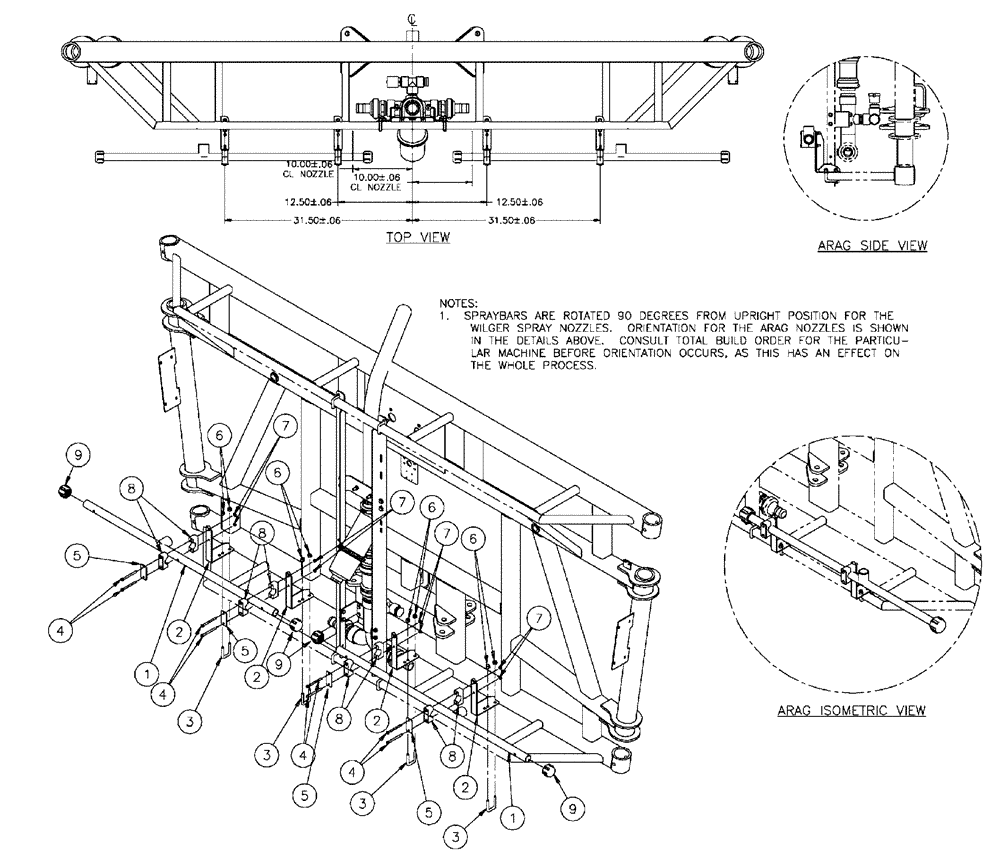

Схема запчастей Case IH SPX4410 - (09-050) - NOZZLE SPACING GROUP, 6 SECTION CENTER, 20" OFF Liquid Plumbing
4
5
5
9
6
8
5
8
3
3
3
1
7
3
7
7
6
2
7
4
2
2
9
2
5
6
6
8
1
4
4
9
8

Артикул

Название

Примечание

Количество

1

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

2шт.

2

BN323957

BRACKET

Mount Weldment, Spray Bar

4шт.

3

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN67054

CLAMP

1.315" OD

4шт.

9

BN73606

CAP

1" NPT, Poly Pipe

4шт.

Выбрано товаров: 9
