Запчасти Case IH SPX4410 (09-049) - BOOM, OUTER PLUMBING, 6 SECTION, LO-FLOW Liquid Plumbing

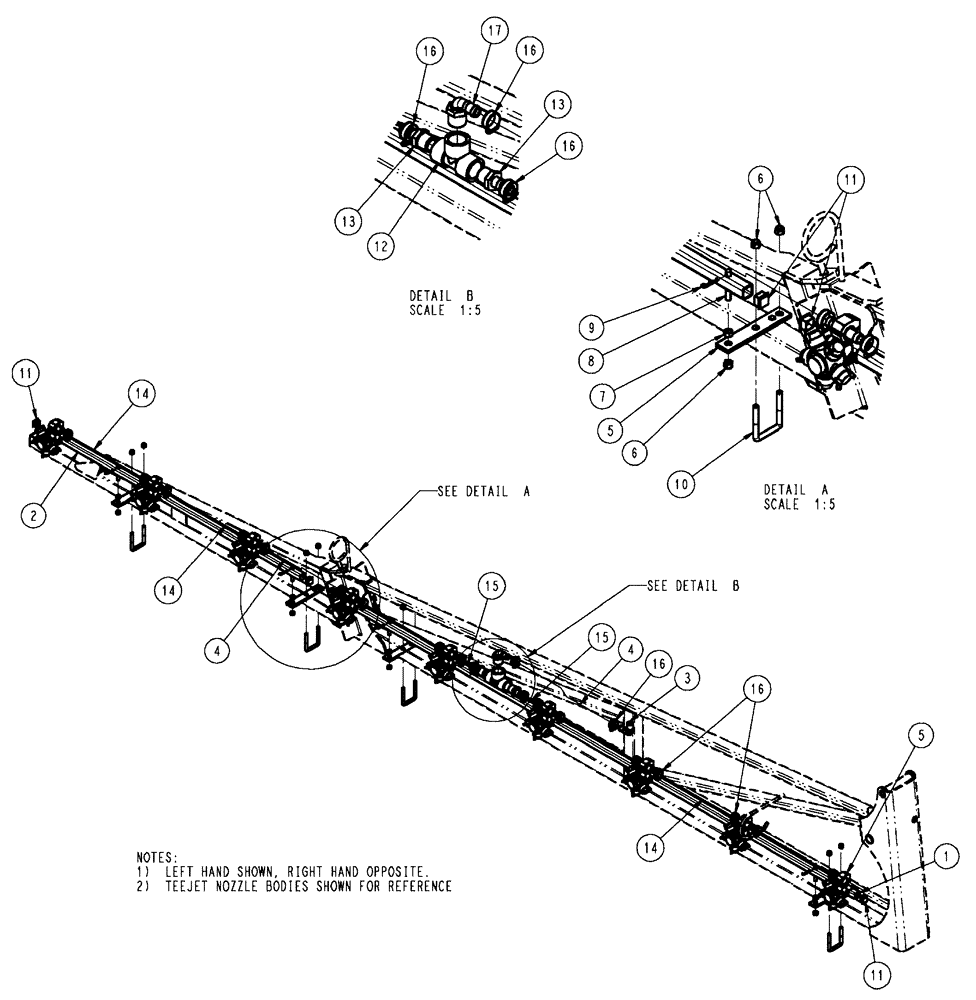

Схема запчастей Case IH SPX4410 - (09-049) - BOOM, OUTER PLUMBING, 6 SECTION, LO-FLOW Liquid Plumbing
8
9
15
17
4
16
14
10
7
2
4
12
1
6
5
11
3
14
11
16
16
14
13
13
11
5
16
15
16
6

Артикул

Название

Примечание

Количество

1

87268204

TUBE,2627 mm L

Outer Section, Boom

1шт.

2

87268205

TUBE,1300 mm L

Outer Breakaway, Boom

1шт.

3

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

4

BN53857

HOSE,0.75" ID x 26.00"

Flexible

2шт.

5

BN67279

BRACKET

mount, dry boom

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN50064

NUT

3/8"-16, Stainless Steel

4шт.

8

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

4шт.

9

BN71006

COTTER PIN

1/8", #11

4шт.

10

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

11

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

4шт.

12

BN73629

TEE

1" Poly Pipe

1шт.

13

BN53666

FITTING

Hosebarb-1 NPT X 3/4 Hose

2шт.

14

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

6шт.

15

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

16

BN310446

HOSE CLAMP

#12, Stainless Steel

20шт.

17

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

1шт.

Выбрано товаров: 17
