Запчасти Case IH SPX4410 (09-033) - SPRAYBAR, CS 20/30", 5 SECTION Liquid Plumbing

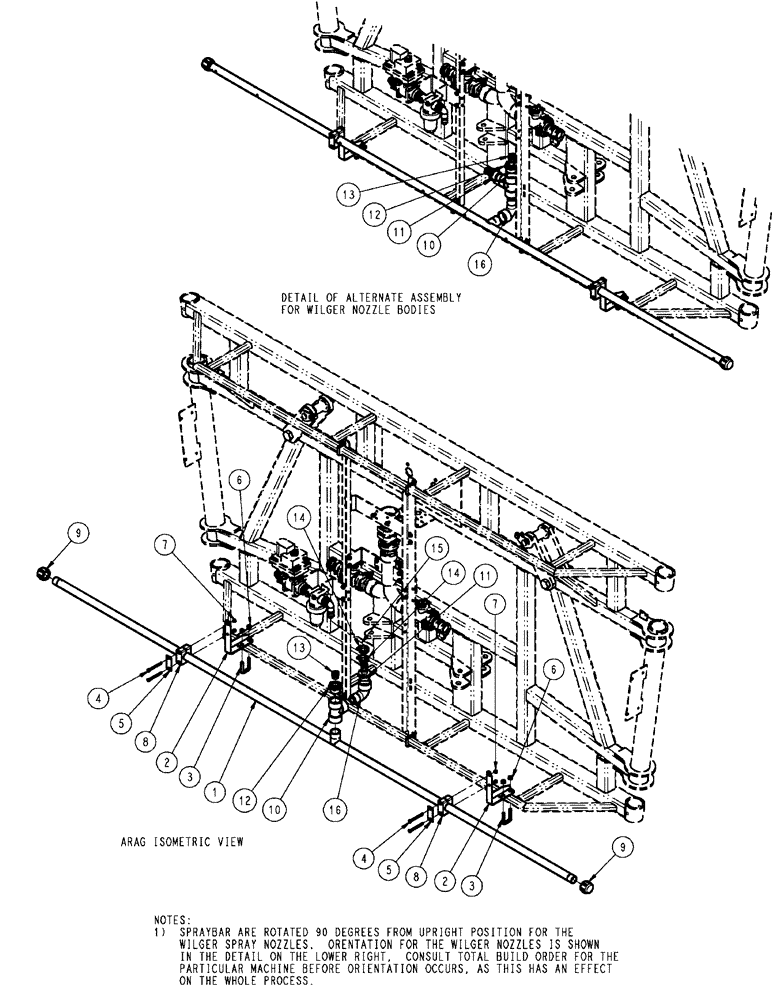

Схема запчастей Case IH SPX4410 - (09-033) - SPRAYBAR, CS 20/30", 5 SECTION Liquid Plumbing
2
6
11
5
16
11
4
1
14
10
5
2
7
12
15
9
9
12
6
4
16
8
7
13
14
13
3
8
3
10

Артикул

Название

Примечание

Количество

1

86986634

TUBE,125" Long, 9 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 9 Nozzles, 20"/30" Nozzle Spacing, Stainless Steel, 125" Long

1шт.

2

BN323957

BRACKET

Mount Weldment, Spray Bar

2шт.

3

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

5

BN309483

PLATE

Single, Size 5

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

7

BN55359

LOCK NUT,1/4"-20, SS

4шт.

8

BN67054

CLAMP

1.315" OD

2шт.

9

BN73606

CAP

1" NPT, Poly Pipe

2шт.

10

BN73662

TEE

1-1/4", Poly

1шт.

11

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

12

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

13

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

14

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

15

BN66859

HOSE

1" EPDM X 23.00"

1шт.

16

BN324890

ELBOW

90º, 1.25 NPT Straight

1шт.

Выбрано товаров: 16
