Запчасти Case IH SPX4410 (09-030) - NOZZLE SPACING GROUP, 5 SECTION MID, 20/30" ON CENTER PLBG Liquid Plumbing

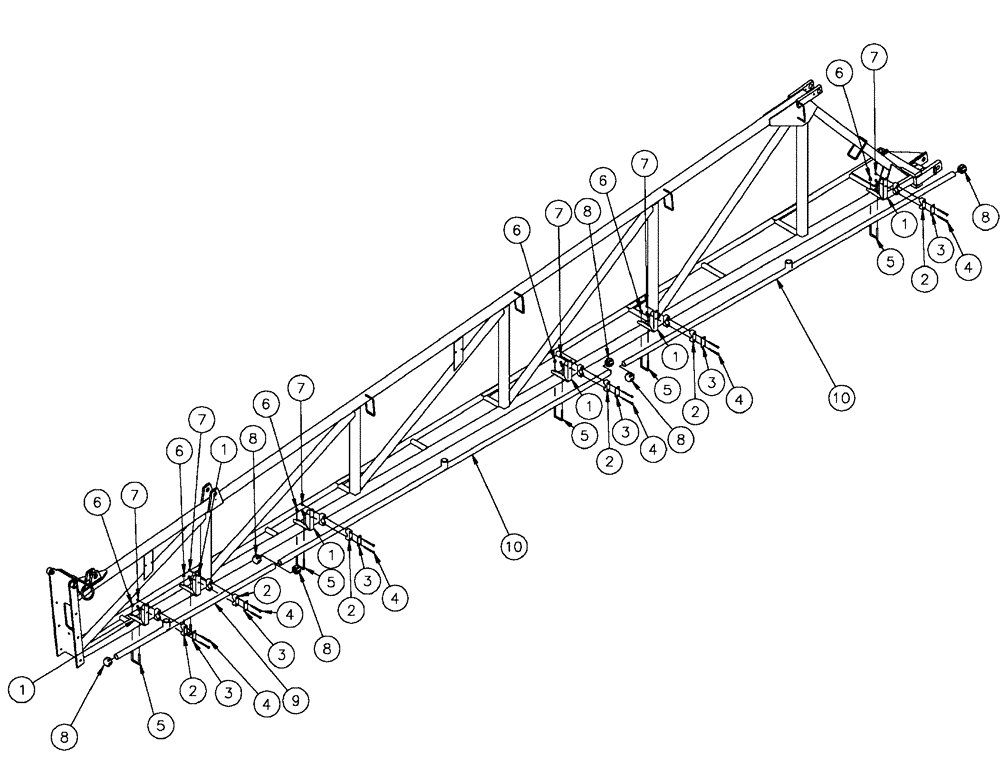

Схема запчастей Case IH SPX4410 - (09-030) - NOZZLE SPACING GROUP, 5 SECTION MID, 20/30" ON CENTER PLBG Liquid Plumbing
7
6
8
1
8
8
2
3
7
3
2
6
4
2
5
7
5
4
7
5
2
6
2
1
3
9
8
1
7
4
2
3
3
6
5
8
8
1
1
6
4
3
4
1
6
7
5
10
10
4

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Top Single, Size 5

4шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN73606

CAP

1" NPT, Poly Pipe

4шт.

9

BN323957

BRACKET

Weldment, Spray Bar

2шт.

10

86986640

SPRAYBAR,55" Long, 4 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 55" Long

1шт.

Выбрано товаров: 10
