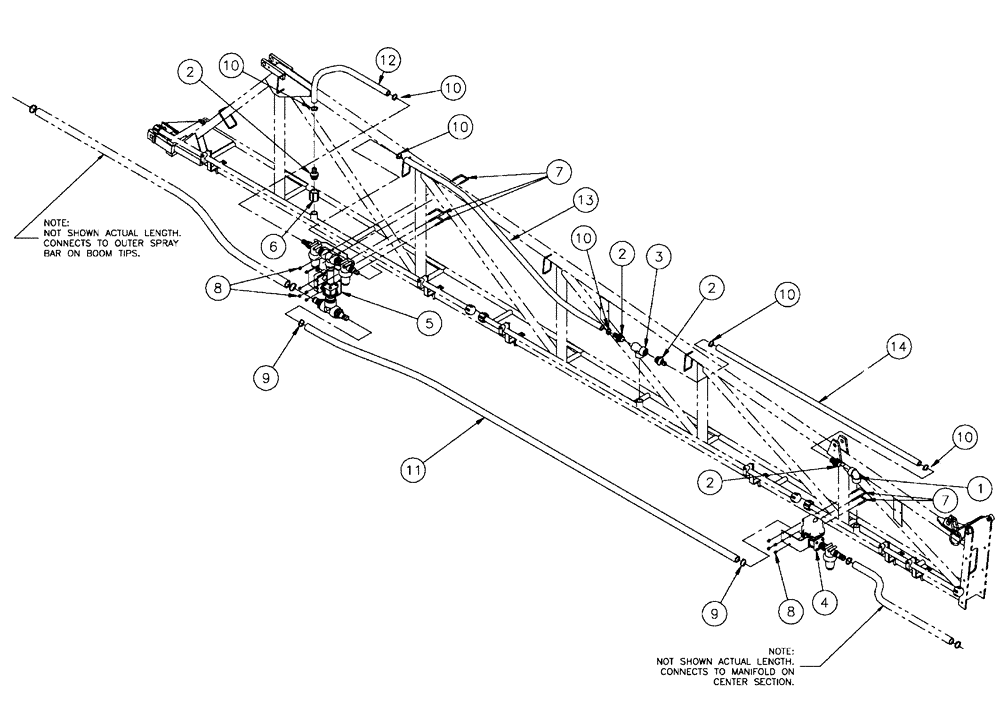

Запчасти Case IH SPX4410 (09-024) - BOOM PLUMBING GROUP, 5 SECTION MID Liquid Plumbing

1

BN313202

ELBOW

1 1/4" NPT 90 Degree

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

4шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN321452

VALVE

Plumbing Group, 5 Section, (LH), See Fig 09-001

1шт.

4

BN321453

VALVE

Plumbing Group, 5 Section, (RH), See Fig 09-001

1шт.

5

BN321455

VALVE

Plumbing Group, 5 Section, See Fig 09-006

1шт.

6

BN305269

COUPLING

1 1/4" Poly

1шт.

7

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

5шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

9

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

10

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

11

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM

1шт.

12

BN53850

HOSE

EPDM 1" ID X 36"

1шт.

13

BN321476

HOSE,1.00" ID x 79.00"

EPDM

1шт.

14

BN320876

HOSE,1.00" ID x 75.00"

EPDM

1шт.
