(09-023) - BOOM PLUMBING GROUP, 5 SECTION 90

Запчасти Case IH SPX4410 (09-023) - BOOM PLUMBING GROUP, 5 SECTION 90 Liquid Plumbing

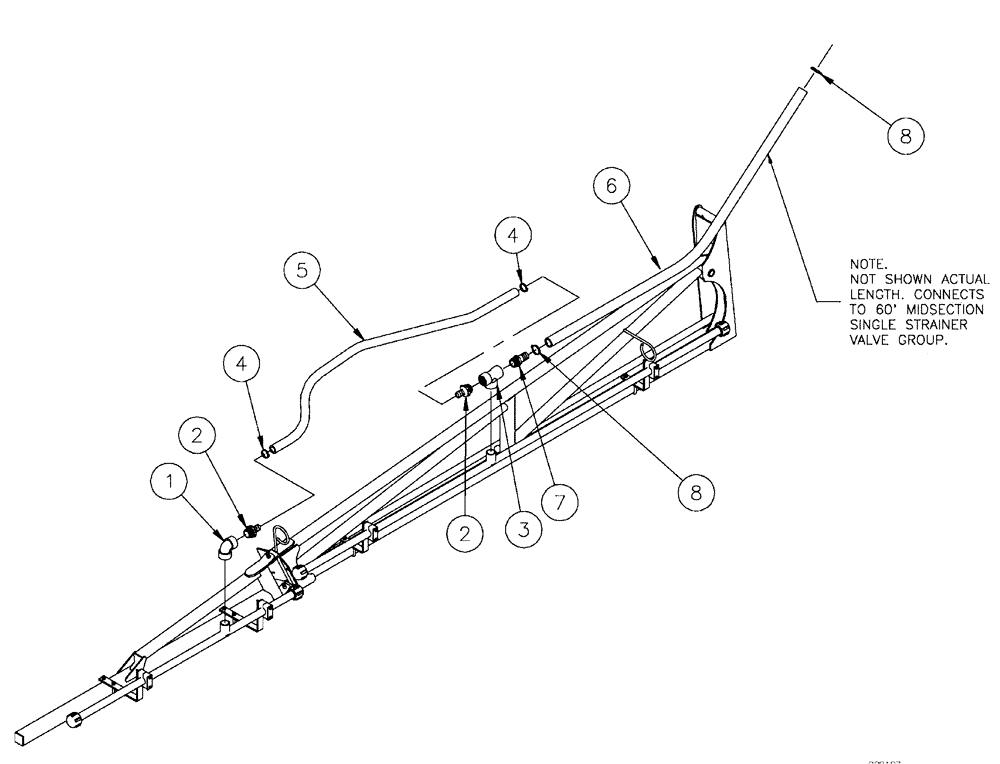

Схема запчастей Case IH SPX4410 - (09-023) - BOOM PLUMBING GROUP, 5 SECTION 90 Liquid Plumbing
2
4
7
8
4
3
2
5
1
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1 1/4" NPT90 Degree

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

5

BN321636

HOSE,1.00" ID x 78.00"

EPDM

1шт.

6

87383454

HOSE,80.00 mm

1шт.

7

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

Выбрано товаров: 8
