(09-020) - THROTTLE VALVE PLUMBING

Запчасти Case IH SPX4410 (09-020) - THROTTLE VALVE PLUMBING Liquid Plumbing

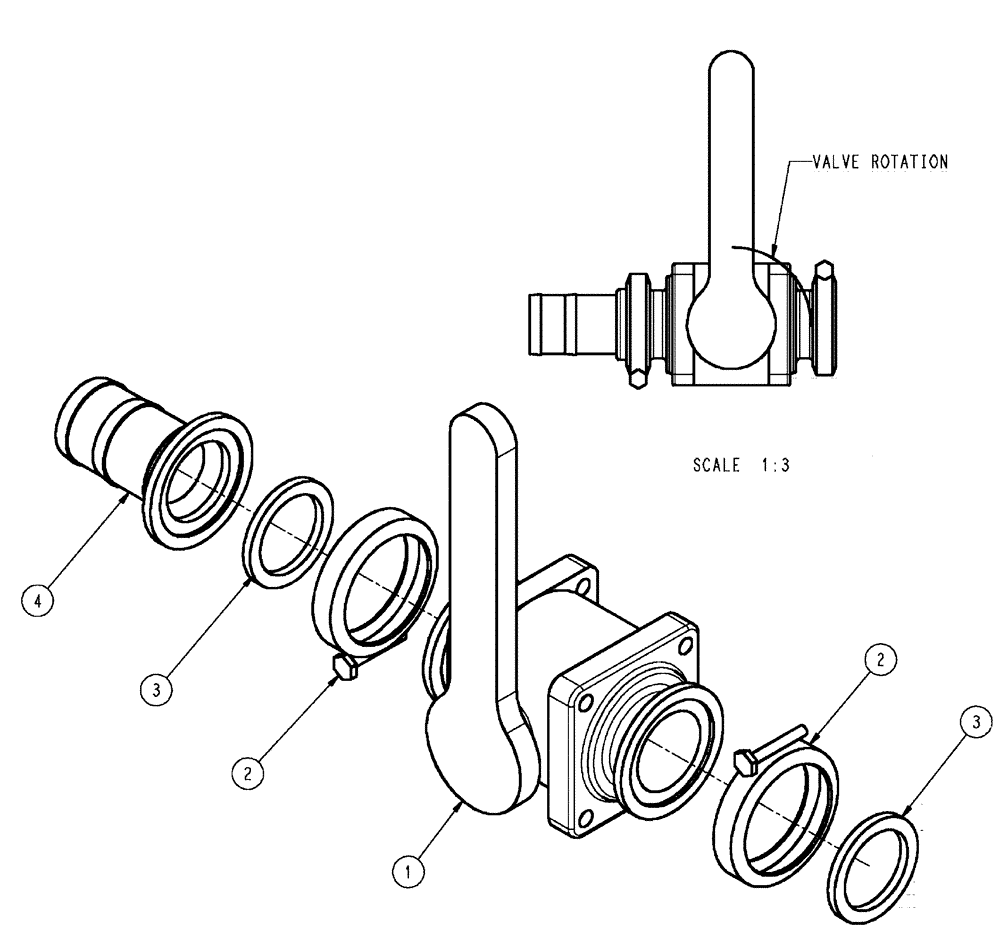

Схема запчастей Case IH SPX4410 - (09-020) - THROTTLE VALVE PLUMBING Liquid Plumbing
2
2
3
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268158

VALVE

2" Full Port Manifold, Throttle

1шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

4

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

Выбрано товаров: 4
