Запчасти Case IH SPX4410 (09-015) - PLUMBING, LO-FLOW MOUNTING Liquid Plumbing

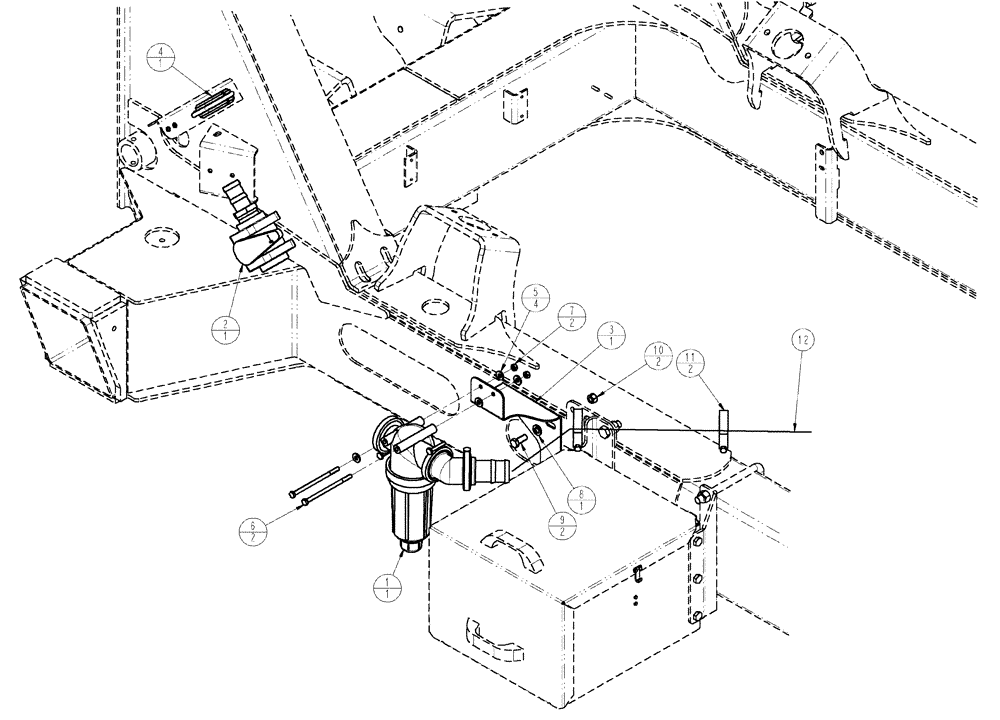

Схема запчастей Case IH SPX4410 - (09-015) - PLUMBING, LO-FLOW MOUNTING Liquid Plumbing
7
9
1
10
8
12
3
4
5
2
11
6

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Strainer, Plumbing Group

1шт.

See Fig. 09-010

1шт.

2

NS

NOT SERVICED

Valve, Plumbing Group, Lo

1шт.

See Fig. 09-007

1шт.

3

87265468

MOUNTING PARTS

Strainer, Teejet

1шт.

4

343818A1

CLAMP

1 1/2" Pipe, Vinyl Insulated

1шт.

4

343819A1

U-BOLT

3/8"-16 x 2.42" id, 2.20" long

1шт.

4

87343970

NUT,3/8"-16, G8, DOR

2шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

6

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

7

9991588

NUT,M8 x 1.25, Cl 8

2шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

9

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

11

BN68377

HOSE

2" EPDM x 50"

1шт.

12

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

Выбрано товаров: 16
