Запчасти Case IH SPX4410 (09-012) - STRAINER, 1" NPT 50M POLY Liquid Plumbing

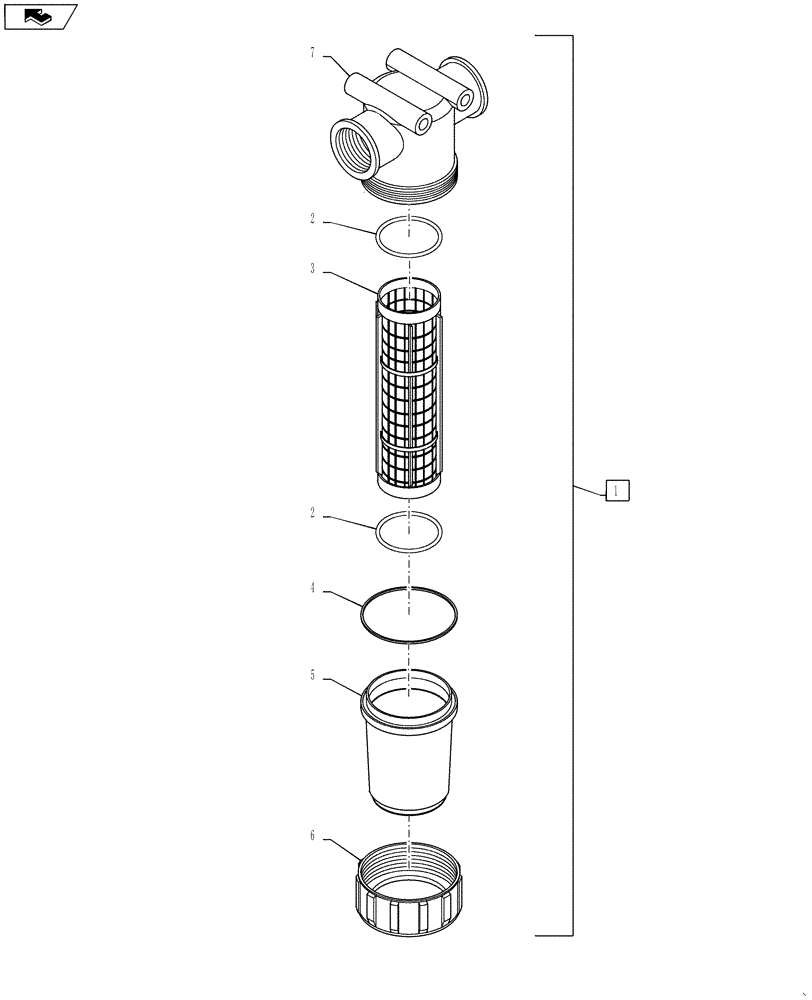

Схема запчастей Case IH SPX4410 - (09-012) - STRAINER, 1" NPT 50M POLY Liquid Plumbing
1
home
3
2
2
4
5
7
6

Артикул

Название

Примечание

Количество

1

BN320072

FILTER STRAINER

1" NPT 50 Mesh, Poly

1шт.

2

87270125

GASKET

Strainer Gasket

2шт.

3

87270126

SCREEN,1", 50 Mesh

50 Mesh, Includes Ref 2

1шт.

3

87272055

FILTER,80 Mesh

80 Mesh, Stainless Steel, Includes Ref 2, Optional, Not Shown, Used When Aim Command Is Installed, 5 Are Required For 5 Section Booms, 6 Are Required For 6 Section Booms, And 1 Is Required For 7 Section Booms

1шт.

4

87270127

GASKET

Strainer Body

1шт.

5

87270128

BODY

Strainer

1шт.

6

87270129

NUT

Strainer

1шт.

7

87270124

HEAD

Strainer

1шт.

Выбрано товаров: 8
