Запчасти Case IH SPX4410 (09-003) - VALVE PLUMBING GROUP, 5 SECTION, CENTER Liquid Plumbing

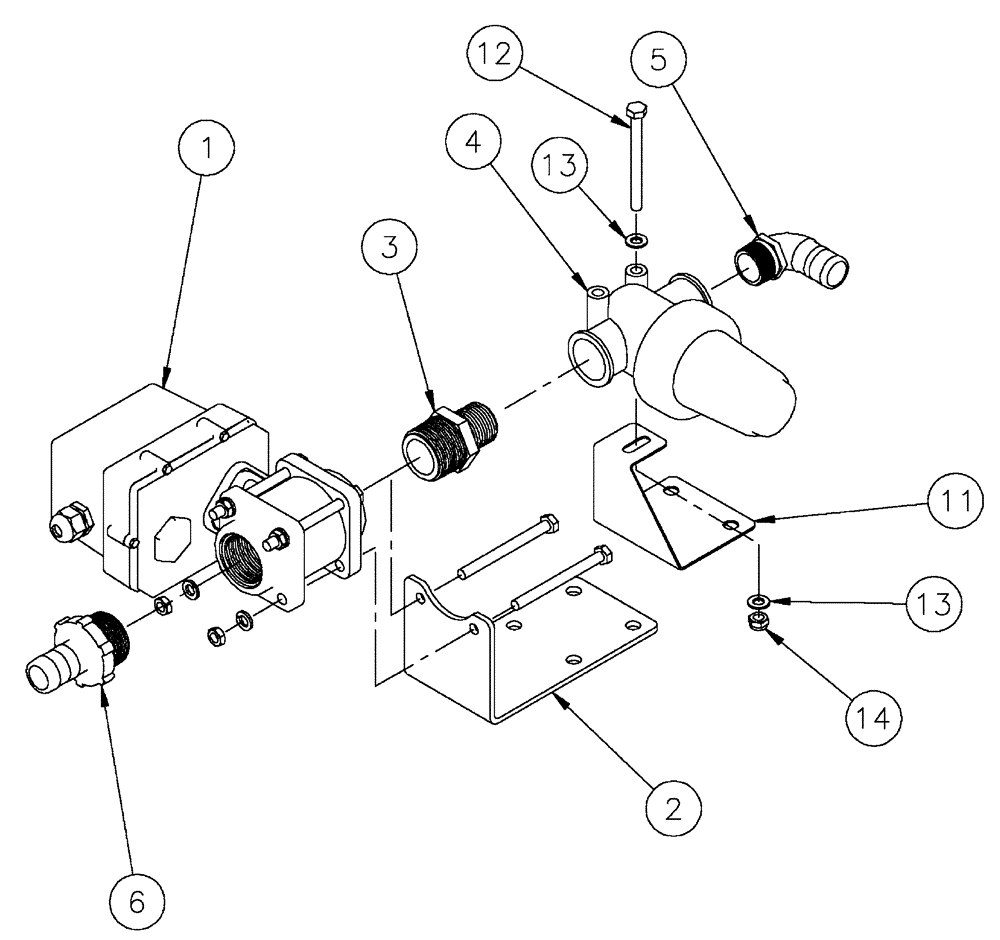

Схема запчастей Case IH SPX4410 - (09-003) - VALVE PLUMBING GROUP, 5 SECTION, CENTER Liquid Plumbing
4
13
12
1
3
13
6
5
11
2
14

Артикул

Название

Примечание

Количество

1

87268179

VALVE

1.25" Ball, Electric

1шт.

See Fig. 09-004

1шт.

2

BN319996

BRACKET

NPT Ball Valve

1шт.

3

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

4

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig. 09-012

1шт.

5

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

6

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

11

BN320060

BRACKET

Strainer, CTR

1шт.

12

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.

13

BN50142

WASHER,5/16", Stainless Steel

2шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

Выбрано товаров: 12
