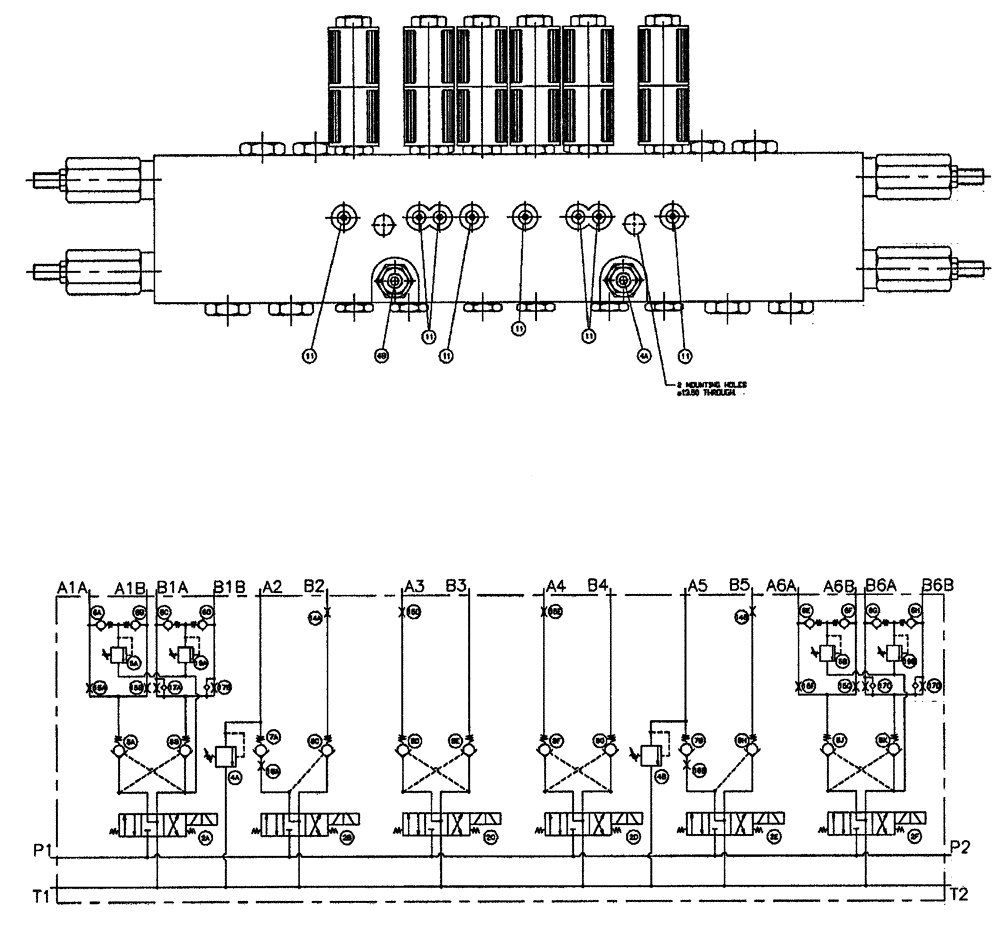

Запчасти Case IH SPX4410 (06-029[02]) - VALVE, 6-SECTION, BOOM/SUSPENSION Hydraulic Plumbing

1

343291A1

HYDRAULIC VALVE

Block

1шт.

2

343278A1

VALVE

3/4 Way Solenoid

6шт.

3

BN314656

SOLENOID

12шт.

4

343283A1

VALVE

relief, 200 psi

2шт.

5

343284A1

VALVE

relief, 2950 psi

2шт.

6

BN314658

CHECK VALVE

8шт.

7

343285A1

VALVE

check 3 psi

2шт.

8

87590496

VALVE

check, 100 psi

10шт.

9

343286A1

PISTON

pilot

2шт.

10

343280A1

PISTON

pilot

4шт.

11

86632547

PLUG,Hex, 5/16"-24 ORB

36шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

14шт.

14

87272009

ORIFICE

Plug .060

2шт.

15

343281A1

PLUG

orifice .039

6шт.

16

343287A1

PLUG

orfice, .069

2шт.

17

343288A1

DISC

orifice, .03

4шт.

18

343289A1

PLUG

Hollow Lock

4шт.

19

343290A1

VALVE

relief, 1500 psi

2шт.

20

87272010

KIT

Ring Retaining

2шт.
