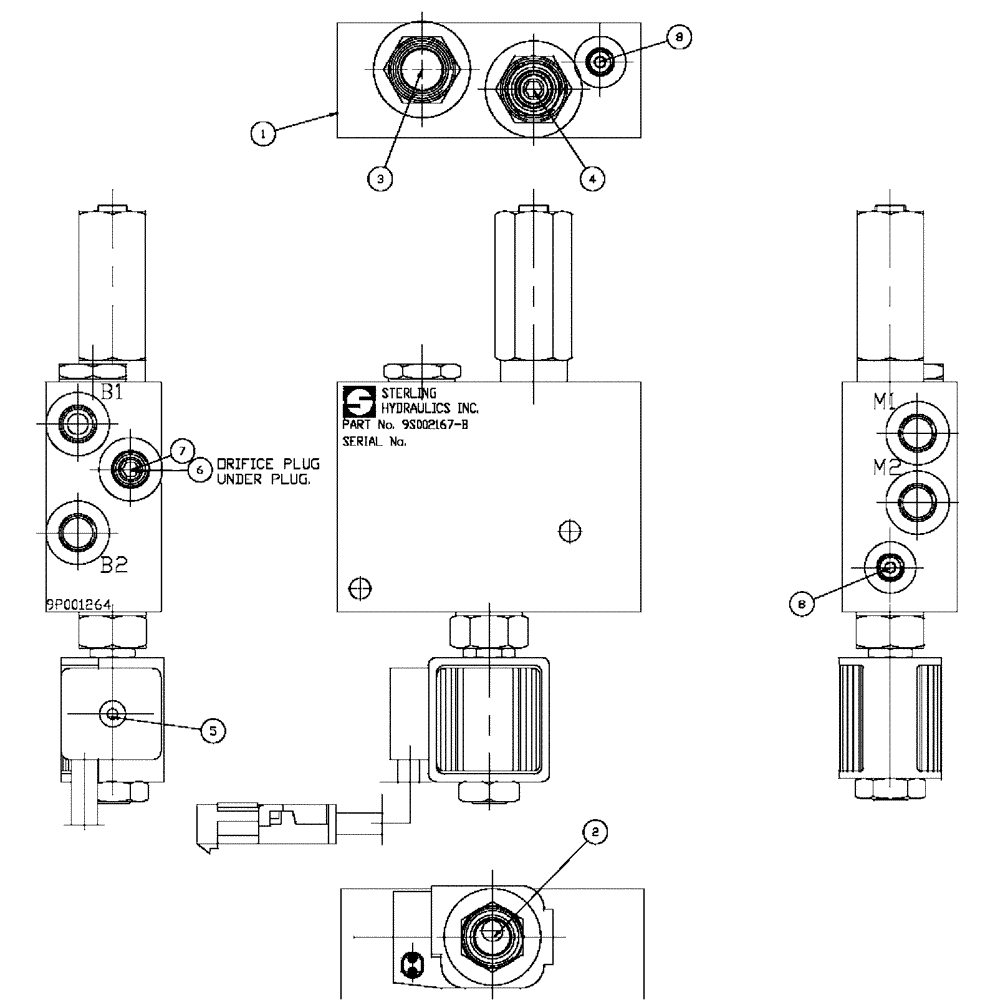

Запчасти Case IH SPX4410 (06-028) - PRESSURE LIMITER VALVE Hydraulic Plumbing

1

BN314641

BLOCK

M/C

1шт.

2

BN314642

SOLENOID

2/2 Way normally open

1шт.

2

BN314643

KIT

Seal

1шт.

Service Parts For Ref. 2

1шт.

3

BN314644

VALVE

Shuttle

1шт.

3

BN314645

KIT

Seal

1шт.

Service Parts For Ref. 3

1шт.

4

BN314646

VALVE

Relief

1шт.

4

BN314647

KIT

Seal

1шт.

Service Parts For Ref. 4

1шт.

5

BN314648

COIL

12V DC Coil

1шт.

6

BN300313

ORIFICE

.070 Load Share

1шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

8

86632547

PLUG,Hex, 5/16"-24 ORB

2шт.
