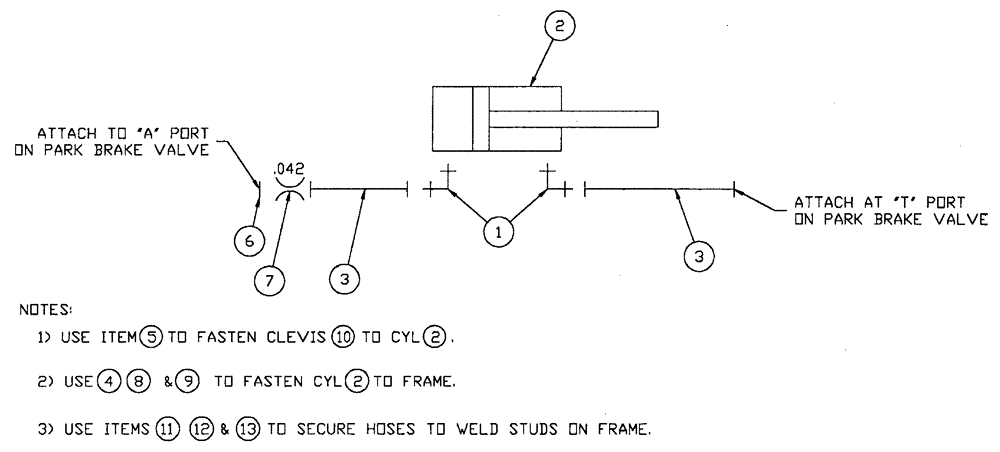

Запчасти Case IH SPX4410 (06-025) - FRONT LADDER HYDRAULIC GROUP "BEFORE SERIAL # 7096" Hydraulic Plumbing

1

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

2шт.

2

BN304687

CYLINDER ASSY.

1 x 6, SAE Ports, Complete

1шт.

3

BN325314

HOSE ASSY.

4 X 98"

2шт.

4

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

5

BN50075

NUT

1/2-20 Hex SS

1шт.

6

BN305412

O-RING

For -6 FFOR

1шт.

7

BN313268

ORIFICE

.042 -6 Disk

1шт.

8

BN71006

COTTER PIN

1/8", #11

2шт.

9

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

10

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

11

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

3шт.

12

86528579

NUT,M8 x 1.25

3шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.
