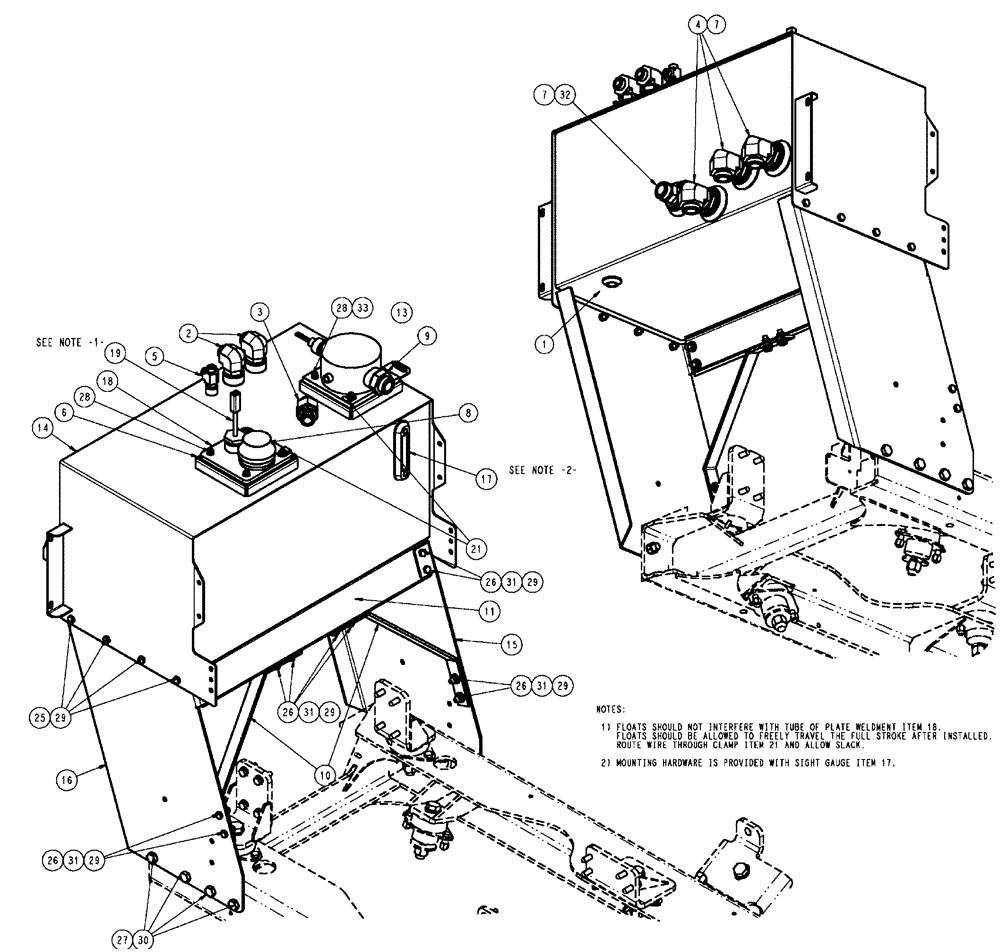

Запчасти Case IH SPX4410 (06-021) - OIL TANK GROUP "BEFORE SERIAL # Y5T020056" Hydraulic Plumbing

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

2

BN302570

ELBOW

12MOR-16MB X 90

2шт.

3

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

4

BN302577

ELBOW

20MOR-20MB X 90

3шт.

5

BN302585

FITTING

8MOR-8MOR-8MBX

1шт.

6

BN302982

GASKET,3.17mm Thk

Cover Plate

1шт.

7

BN303528

STRAINER ASSY.

32MB X -20FB, 100

4шт.

8

BN304339

VALVE

Pressure Valve

1шт.

9

BN305058

FITTING

20MOR-24MB

1шт.

10

343915A1

SUPPORT

Tank Leg

2шт.

11

86986999

CHANNEL

Hydraulic Tank

1шт.

13

87270935

FILTER

Intank, SAE 24, 6ABS, Serial Range: JFG0007053-Y5T020056

1шт.

13

BN306030

FILTER

Tank, SAE 24, 6ABS, Serial Range: -JFG0007052

1шт.

14

87270550

TANK

Oil, 778D

1шт.

15

87266518

MOUNTING PLATE

Hydraulic Tank, LH

1шт.

16

87266519

MOUNTING PLATE

Hydraulic Tank, RH

1шт.

17

BN322594

GAUGE

sight with temperature

1шт.

18

BN323450

PLATE

Temp Level, Wldmnt

1шт.

19

BN323888

INDICATOR

Multi-Level Oil

1шт.

21

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

25

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

26

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

27

86509867

BOLT,Hex Flg, M16 x 40mm

8шт.

28

86528579

NUT,M8 x 1.25

8шт.

29

100037

LOCK NUT,M10 x 1.5, Cl 8

20шт.

30

832-46416

NUT,M16 x 2, Cl 8

8шт.

31

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

12шт.

32

BN302660

FITTING

20MOR-20MB

1шт.

33

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.
