Запчасти Case IH SPX4410 (06-020) - OIL TANK GROUP "SERIAL # Y5T020056 AND LATER" Hydraulic Plumbing

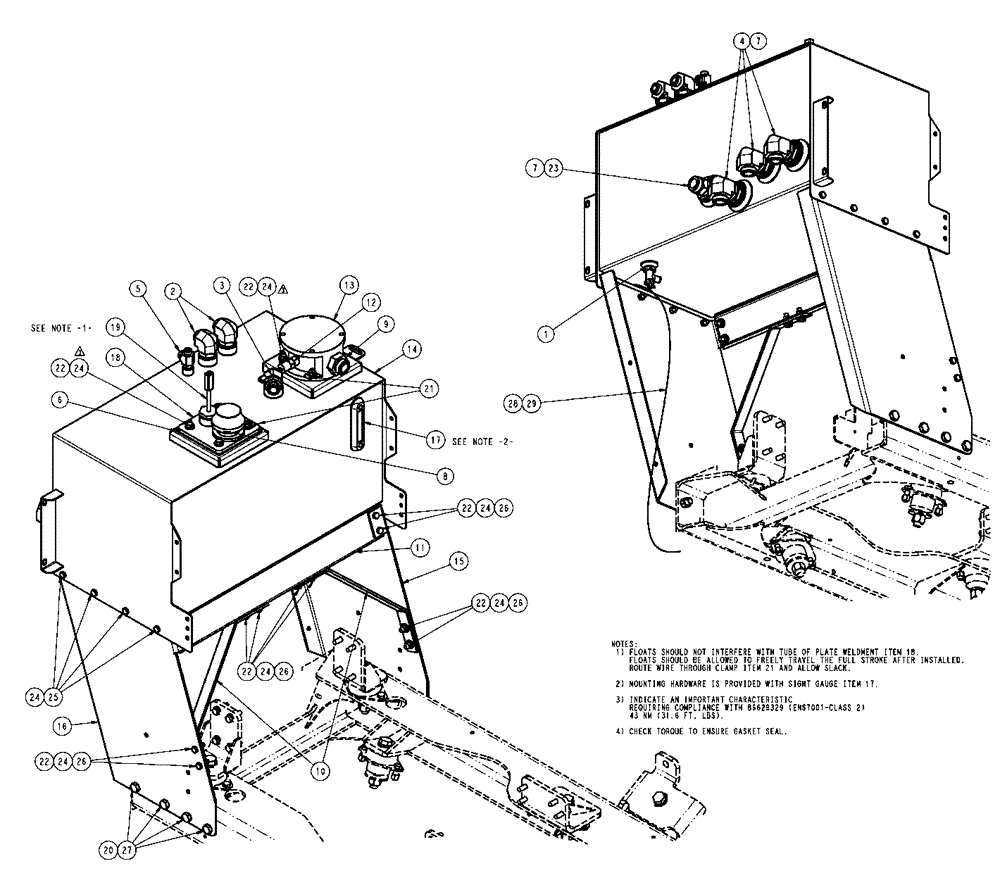

Схема запчастей Case IH SPX4410 - (06-020) - OIL TANK GROUP "SERIAL # Y5T020056 AND LATER" Hydraulic Plumbing
26
8
26
24
24
6
22
14
27
22
2
7
29
28
17
15
23
1
21
22
20
24
9
16
2
24
4
7
25
13
10
11
18
22
12
22
5
19
3
26
26
24
22
24

Артикул

Название

Примечание

Количество

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

2

BN302570

ELBOW

12MOR-16MB X 90

2шт.

3

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

4

BN302577

ELBOW

20MOR-20MB X 90

3шт.

5

BN302585

FITTING

8MOR-8MOR-8MBX

1шт.

6

87272095

GASKET,3.17mm Thk

Cover Plate

1шт.

7

BN303528

STRAINER ASSY.

32MB X -20Fb, 100

4шт.

8

BN304339

VALVE

Pressure Valve

1шт.

9

BN311052

FITTING

16MOR-20MB

1шт.

10

343915A1

SUPPORT

Tank Leg

2шт.

11

86986999

CHANNEL

Hydraulic Tank

1шт.

12

87267808

PRESSURE SWITCH

25 psi N/C

1шт.

13

87267807

HYDRAULIC OIL FILTER

Oil In-Tank SPX

1шт.

See Fig. 06-022(02)

1шт.

14

87272073

TANK

Oil, 778D

1шт.

15

87266518

MOUNTING PLATE

Hydraulic Tank, LH

1шт.

16

87266519

MOUNTING PLATE

Hydraulic Tank, RH

1шт.

17

BN322594

GAUGE

sight with temperature

1шт.

18

87272099

PLATE

Temp Level

1шт.

19

BN323888

INDICATOR

Multi - Level Oil

1шт.

20

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

8шт.

21

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

22

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

20шт.

23

BN302660

FITTING

20MOR-20MB

1шт.

24

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

28шт.

25

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

26

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

27

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

8шт.

28

129096A1

HOSE

Reservoir Drain

1шт.

29

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

Выбрано товаров: 30
