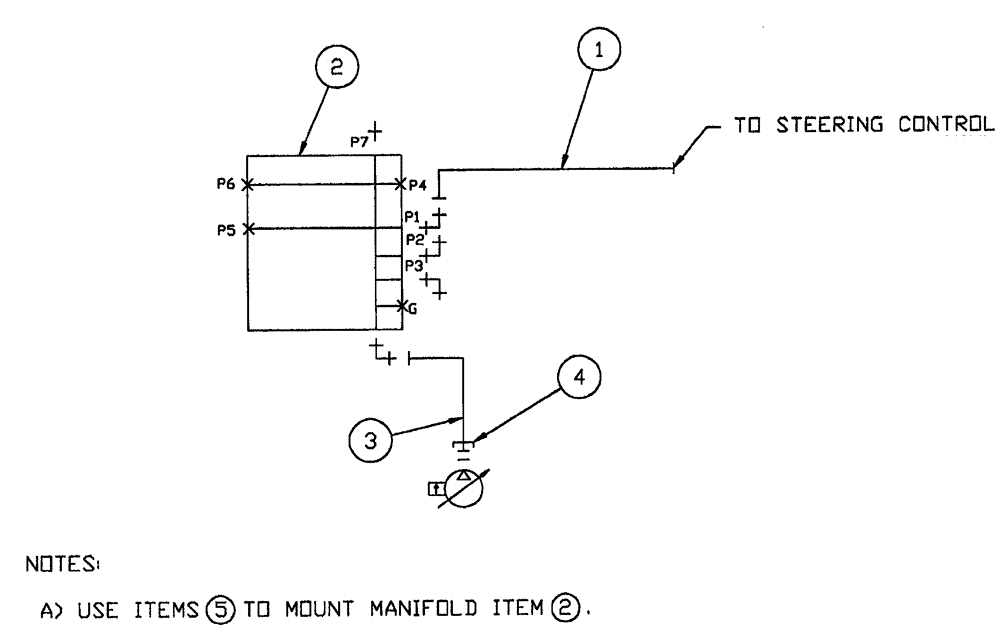

Запчасти Case IH SPX4410 (06-018) - MANIFOLD GROUP Hydraulic Plumbing

1

343293A1

HOSE

6 x 24”

1шт.

2

BN323902

MANIFOLD

Pressure COMP.

1шт.

See Fig. 06-026

1шт.

3

86986084

HOSE,19.05mm ID x 2489mm L, SAE 100R17

12 x 98"

1шт.

4

BN316600

KIT

Kit 3/4 Split Flange CO 61

1шт.

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

For Ref 4

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
