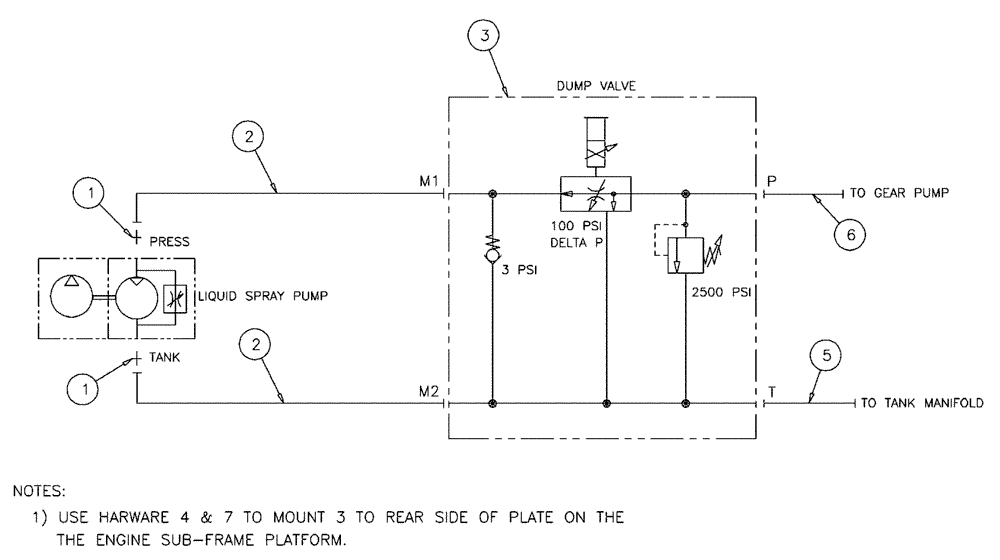

Запчасти Case IH SPX4410 (06-015) - PRODUCT PUMP HYDRAULIC GROUP Hydraulic Plumbing

1

BN307930

ADAPTER

8 MB-10 MFFOR

2шт.

2

87267699

HOSE

12 x 32"

2шт.

3

342100A1

VALVE

Product, With Fittings

1шт.

See Fig. 06-027

1шт.

4

353308

NUT,M6 x 1.0, Cl 8

2шт.

5

BN324672

HOSE ASSY.

12 X 36"

1шт.

6

86986097

HOSE

12 x 90"

1шт.

7

86505841

BOLT,Hex, M6 x 1 x 100mm, Cl 8.8

2шт.
