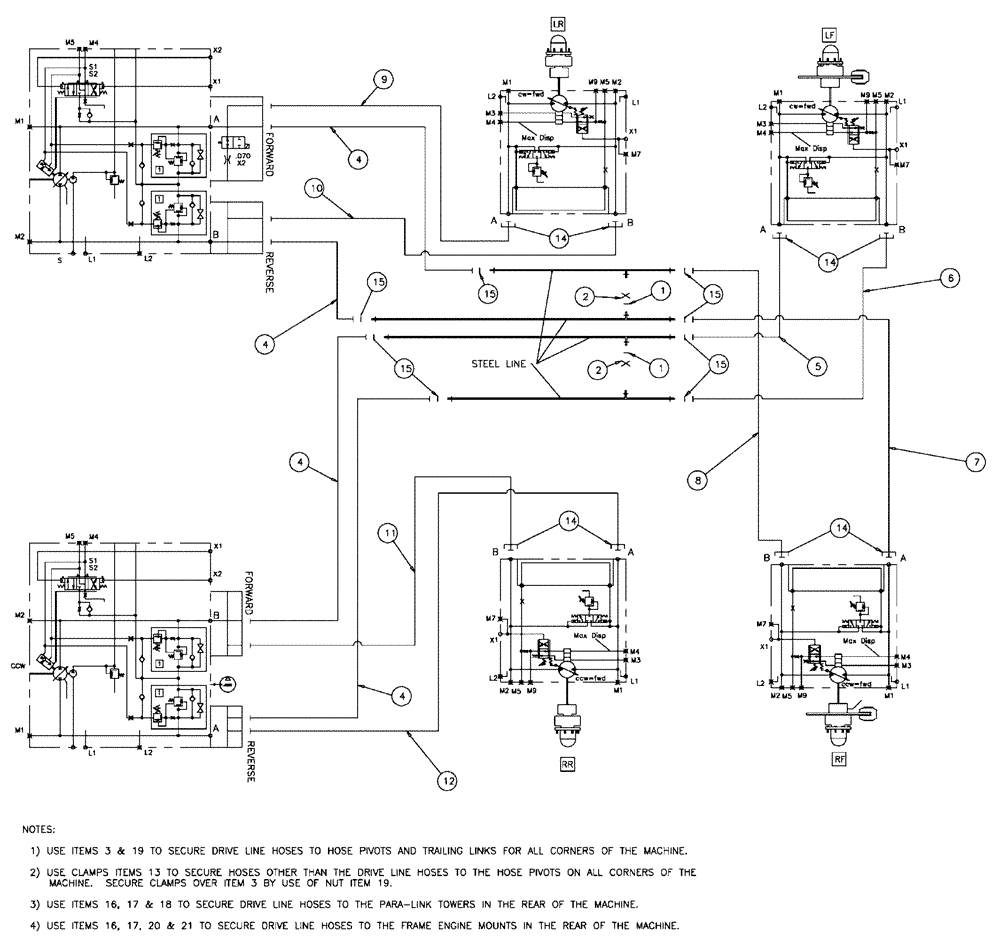

Запчасти Case IH SPX4410 (06-013) - HYDRAULIC DRIVE LOOP GROUP Hydraulic Plumbing

1

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

For -4 FFOR

2шт.

2

BN305425

CAP

4 FFOR

2шт.

3

BN320383

CLAMP

1.25" W/320382

3шт.

4

342930A1

HOSE,25.4mm ID x 1676.4mm L

16 x 66"

4шт.

5

BN307796

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1шт.

6

BN307797

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1шт.

7

BN307798

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1шт.

8

BN307799

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1шт.

9

BN307800

HOSE ASSY.,25.4mm ID x 4622.8mm L, SAE 100R13

1шт.

10

BN307801

HOSE ASSY.,25.4mm ID x 4622.8mm L, SAE 100R 13

1шт.

11

BN307802

HOSE,25.4mm ID x 4622.8mm L, SAE 100R13

1шт.

12

BN307803

HOSE ASSY.,25.4mm ID x 4622.8mm L, SAE 100R13

1шт.

13

515-23508

CLAMP,2", Insul, 3/8" Bolt

4шт.

14

BN52315

KIT

1" Split Flange Code 62

8шт.

BN52317

O-RING

For Ref 14

8шт.

15

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

8шт.

16

BN67495

CLAMP

Dual (1 & 1/2" Tube)

4шт.

Does not include 87000231

1шт.

16

87000231

PLATE

hose clamp bar

8шт.

17

86528579

NUT,M8 x 1.25

4шт.

18

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.
