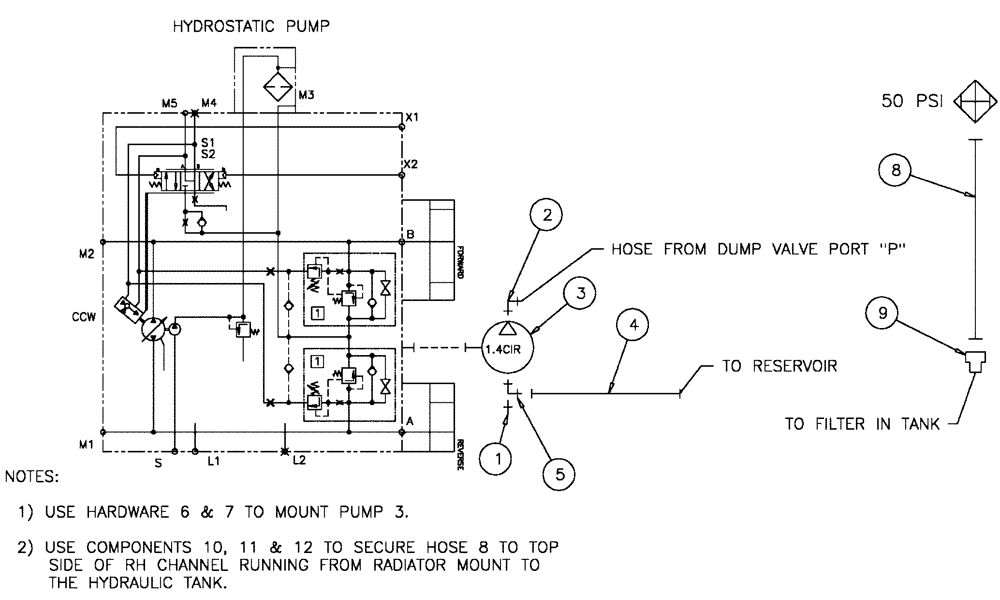

Запчасти Case IH SPX4410 (06-010) - PUMP GROUP, DED Hydraulic Plumbing

1

BN302641

FITTING

4MOR-6MB

1шт.

2

BN53590

ELBOW

12MOR-10MB x 90

1шт.

3

87266244

PUMP,22 CC

Gear, 1.39 Cu. In LH

1шт.

3a

84226692

SERVICE KIT

SEAL, GEAR, PUMP, P/N 87266244

1шт.

4

344001A1

HOSE

Assembly 20 X 22"

1шт.

5

BN313173

ADAPTER

Machined

1шт.

6

BN50145

WASHER

3/3, FW, G5

2шт.

7

BN50368

BOLT

3/8-16 X 1.25, HH, G8 (Plated)

2шт.

8

343997A1

HOSE

Assembly -16 X 87"

1шт.

9

201-118

REDUCER,1-7/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

1шт.

10

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

86528579

NUT,M8 x 1.25

2шт.
