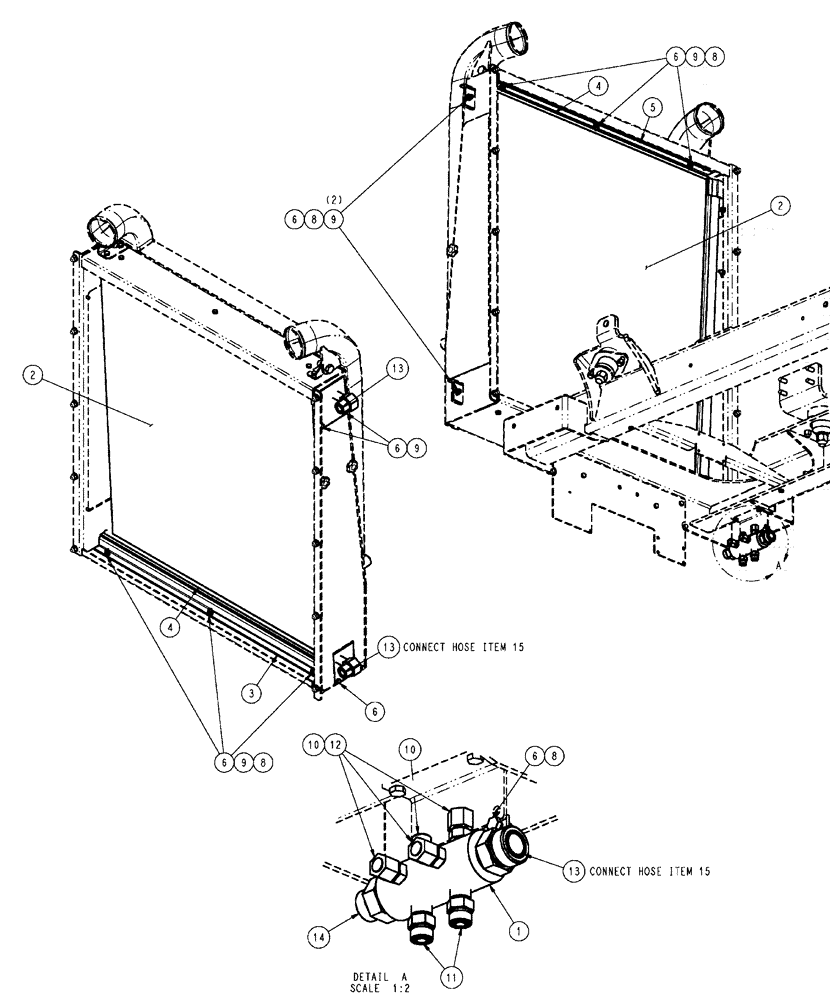

Запчасти Case IH SPX4410 (06-009) - OIL COOLER/MANIFOLD GROUP Hydraulic Plumbing

1

BN307639

MANIFOLD

HYD. Return

1шт.

2

87267467

OIL COOLER

HYD.

1шт.

3

BN324182

MOUNTING PLATE

Lower

1шт.

4

BN324183

OIL SEAL

Oil Cooler

2шт.

5

BN324184

MOUNTING PLATE

Seal, Upper

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

8

86528579

NUT,M8 x 1.25

10шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

10

BN305412

O-RING

For 6 FFOR

4шт.

11

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

For 8 FFOR

2шт.

12

BN305426

CAP

6 FFOR

3шт.

13

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

1шт.

14

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ARP Standard #018

1шт.

15

BN307791

HOSE ASSY.

Not Shown

1шт.
