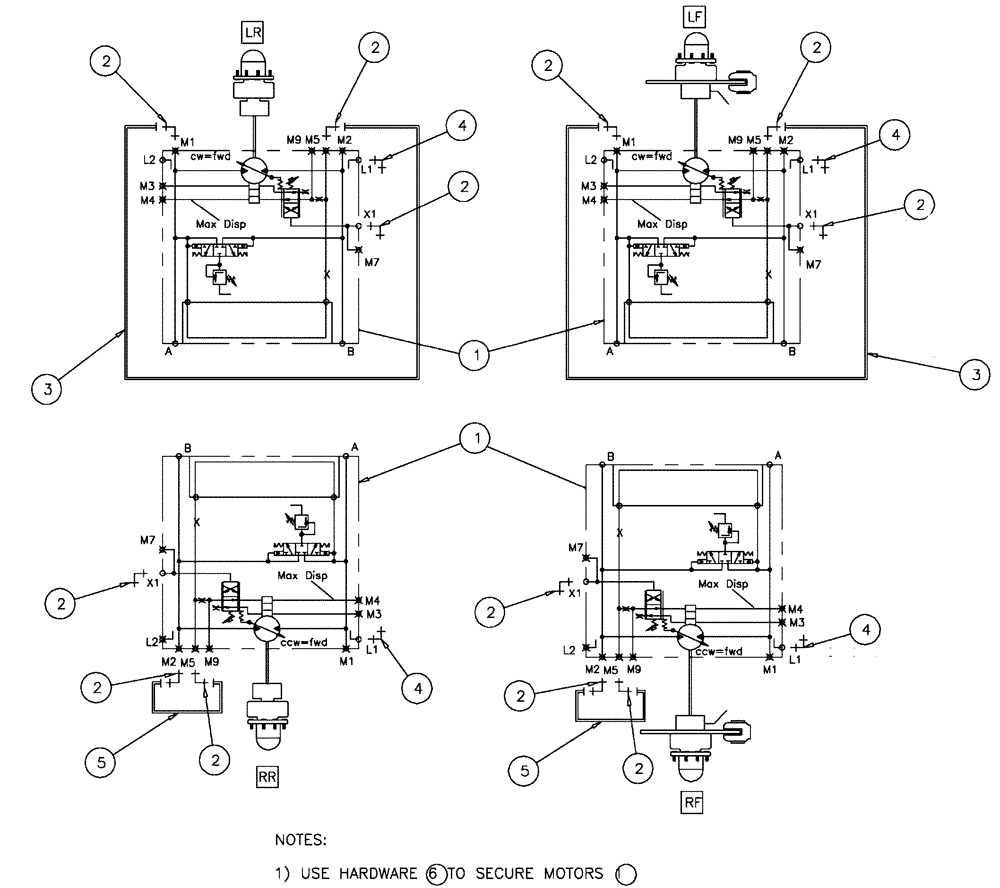

Запчасти Case IH SPX4410 (06-006) - WHEEL MOTOR GROUP Hydraulic Plumbing

1

BN325931

HYDRAULIC MOTOR

Series 51 80 CC SAE

4шт.

See Fig. 06-035

1шт.

BN325931R

REMAN-HYD MOTOR

SPX4410 SPRAYER, Series 51, 80 CC SAE (6/04-8/06)

4шт.

BN325931C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

12шт.

3

BN320668

TUBE

Jumper M1 M2 .049 W

2шт.

4

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

4шт.

5

BN320669

TUBE

Jumper M2 M5 .049 W

2шт.

6

87013798

12 PT SCREW,Flg, M12 x 50mm, Cl 12.9

16шт.
