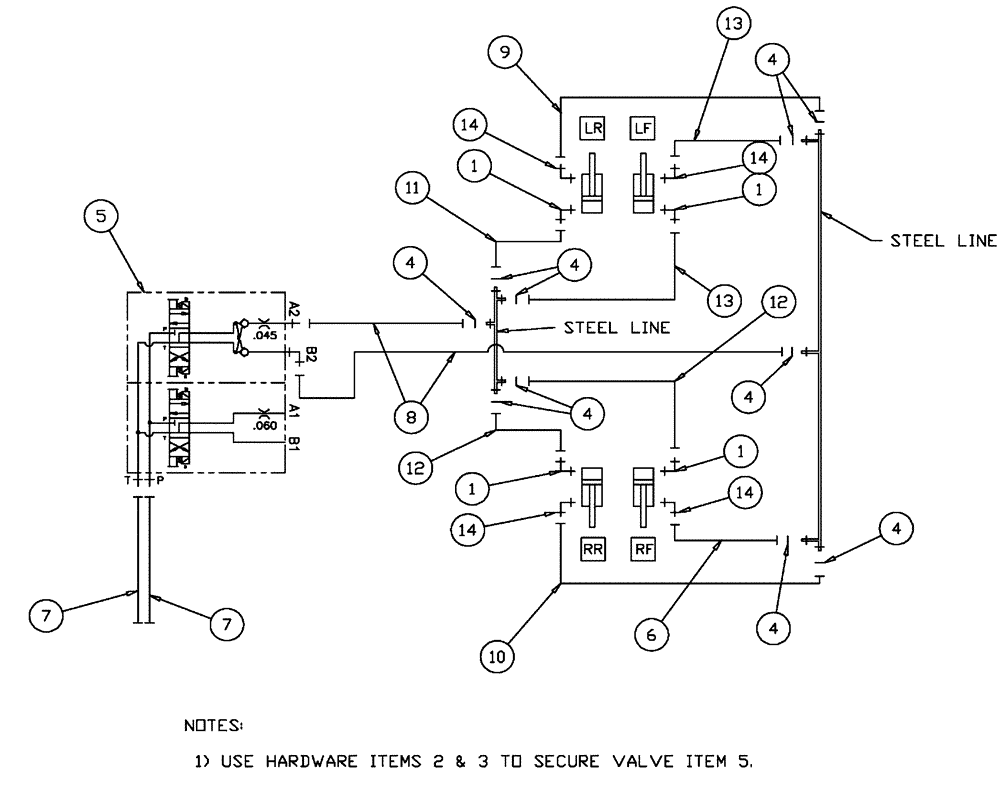

Запчасти Case IH SPX4410 (06-002) - HYDRAULIC GROUP, STANDARD AXLE Hydraulic Plumbing

1

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

4шт.

2

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

4

BN305412

O-RING

For, 6 FFOR

10шт.

5

87267724

HYDRAULIC VALVE

2-Bank, Raven, With Fittings

1шт.

See Fig. 06-031

1шт.

6

BN317622

HOSE ASSY.,9.53mm ID x 1498.6mm L, SAE 100R17

6 X 59"

1шт.

7

BN307824

HOSE ASSY.

2шт.

8

BN307814

HOSE

2шт.

9

BN322523

HYDRAULIC HOSE

- 6 x 55"

1шт.

10

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

6 X 64"

1шт.

11

BN313337

HOSE

6 X 50"

1шт.

12

BN307873

HOSE

2шт.

13

BN322525

HOSE ASSY.

6 X 48"

2шт.

14

BN302419

ELBOW

6 MOR - 6 MB X 90 LL

4шт.
