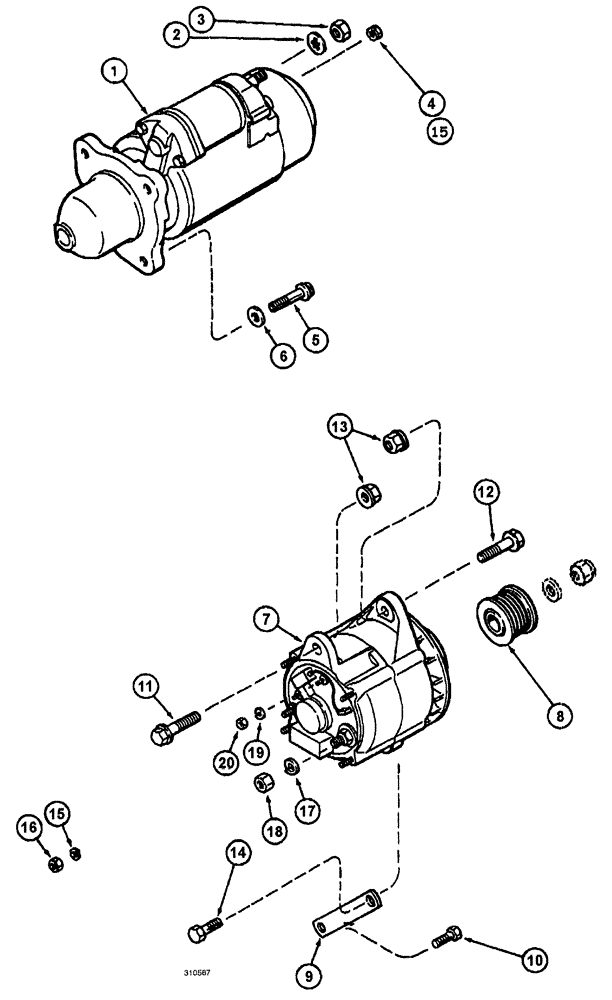

Запчасти Case IH SPX4260 (084) - STARTER, ALTERNATOR PACKAGE (55) - ELECTRICAL SYSTEMS

1

193432A1

STARTING MOTOR

1шт.

2

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

3

829-4412

NUT,Thin, M12 x 1.75, Cl 5

1шт.

5

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

3шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

7

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 AMP

1шт.

7

125849A1R

REMAN-ALTERNATOR

1шт.

7

125849A1C

CORE-ALTERNATOR

Return Number

1шт.

7

125849A1GV

ALTERNATOR

Value, 135 Amp

1шт.

8

A189616

PULLEY

alternator

1шт.

9

J911485

SUPPORT

BRACE alternator

1шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

Brace to Engine

1шт.

11

87015908

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

1шт.

12

86642458

BOLT,Hex, M12 x 50mm, Cl 10.9

1шт.

13

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

14

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

15

86509828

LOCK WASHER,M5

5шт.

16

87016571

NUT,M5, Cl 5

4шт.

17

81547

LOCK WASHER,7/16"

1шт.

18

100012

NUT,M4 x 0.7, Cl 8

1шт.

19

892-11004

LOCK WASHER,M4

1шт.

20

435-147

JAM NUT

Hex, Jam, 7/16 NC

1шт.

21

258820A1

SCREW

M5 x 8

1шт.
