Запчасти Case IH SPX4260 (008) - GAUGES, ACCESSORIES (55) - ELECTRICAL SYSTEMS

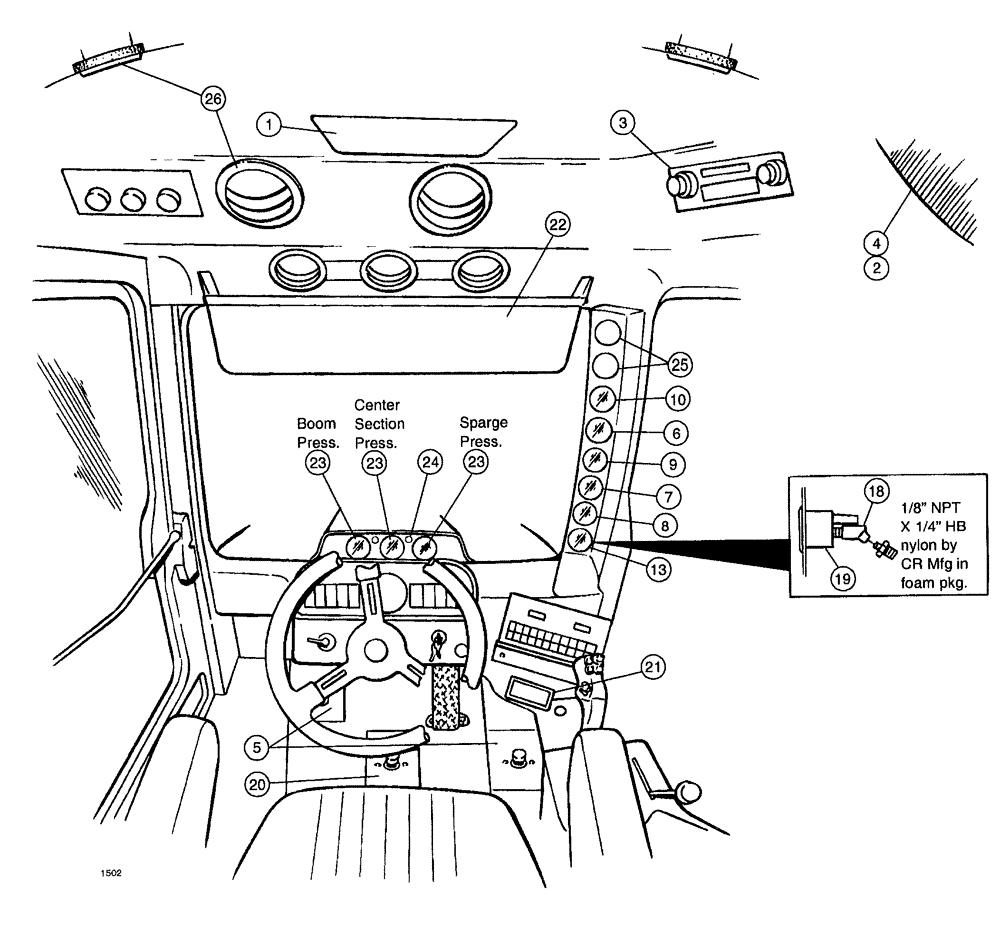

Схема запчастей Case IH SPX4260 - (008) - GAUGES, ACCESSORIES (55) - ELECTRICAL SYSTEMS
9
2
6
1
20
24
5
22
26
21
23
18
25
8
4
7
19
23
3
10
13
23

Артикул

Название

Примечание

Количество

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

BN300876

BULB

Dome, 12 volt

1шт.

Indicates service parts for above ref. number

1шт.

2

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

8шт.

3

BN57219

RADIO

AM/FM/Cassette 12V

1шт.

+

BN57222

ANTENNA

Radio

1шт.

Indicates associated part

1шт.

+

BN311133

BRACKET

Antenna, Radio

1шт.

Indicates associated part

1шт.

+

BN50051

NUT,1/4"-20, USR

1шт.

Indicates associated part

1шт.

+

BN50205

BOLT

1/4"-20 x .625 TH, SS

5шт.

Indicates associated part

1шт.

+

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

2шт.

Indicates associated part

1шт.

4

BN57220

SPEAKER

JVC (SET OF 2)

1шт.

5

BN29522

SWITCH

LH Side, Dimmer, Floor Mount, RH Side Boom Section Valve

2шт.

+

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Indicates associated part

1шт.

+

BN50051

NUT,1/4"-20, USR

2шт.

Indicates associated part

1шт.

+

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Indicates associated part

1шт.

+

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Indicates associated part

1шт.

+

BN50205

BOLT

1/4"-20 x .625 TH, SS

4шт.

Indicates associated part

1шт.

6

BN67301

FUEL GAUGE

level 12V, N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Indicates service parts for above ref. number

1шт.

7

BN67302

ELECTRICAL GAUGE

Temp 280 DEG.12V.NG

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Indicates service parts for above ref. number

1шт.

8

BN67303

ELECTRICAL GAUGE

oil pressure, 100 psi

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Indicates service parts for above ref. number

1шт.

9

BN67304

ELECTRICAL GAUGE

volt 12VDC/10-16

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

Indicates service parts for above ref. number

1шт.

10

326944A1

HOURMETER

LCD, 12V

1шт.

13

BN68270

ELECTRICAL GAUGE

ASSEMBLY, Foam Pressure

1шт.

Incluides Refs. 18 & 19

1шт.

BN309417

FITTING

FT,HB,1/8MPTX1/4HS,NYL.

1шт.

Indicates parts of an assembly

1шт.

18

BN68256

ELBOW

45º 1/8 NPT - Female

1шт.

19

BN67307

ELECTRICAL GAUGE

PRESSURE, foam 0-80

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

Indicates service parts for above ref. number

1шт.

NOTE: Bulb #301819 (1.06" long) must be used in foam pressure guage because of internal interference with a longer bulb.

1шт.

20

BN68440

SWITCH

Load Share

1шт.

+

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Indicates associated part

1шт.

+

BN50051

NUT,1/4"-20, USR

2шт.

Indicates associated part

1шт.

+

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Indicates associated part

1шт.

+

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Indicates associated part

1шт.

21

BN66127

ASH TRAY

1шт.

22

BN67055

SUN VISOR

Plastic, 33"

1шт.

+

BN314732

BRACKET

Visor, LH

1шт.

Indicates associated part

1шт.

+

BN314731

BRACKET

Visor, RH

1шт.

Indicates associated part

1шт.

+

BN304238

MOUNTING PARTS

bracket, rear

1шт.

Indicates associated part

1шт.

+

BN312062

MOUNTING PARTS

bracket, bent, LR

1шт.

Indicates associated part

1шт.

+

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

Indicates associated part

1шт.

23

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

3шт.

24

BN2297225

LIGHT

39F3462

2шт.

+

BN308086

PANEL

outside guage

1шт.

Indicates associated part

1шт.

+

BN313904

SEAL

trim 23" OF PART 55196

1шт.

Indicates associated part

1шт.

25

BN2394628

PLUG

dash 7/8" #2703

2шт.

26

NSS

NOT SOLD SEPARAT

A/C LOUVERS

1шт.

See Fig. 020

1шт.

Выбрано товаров: 79
