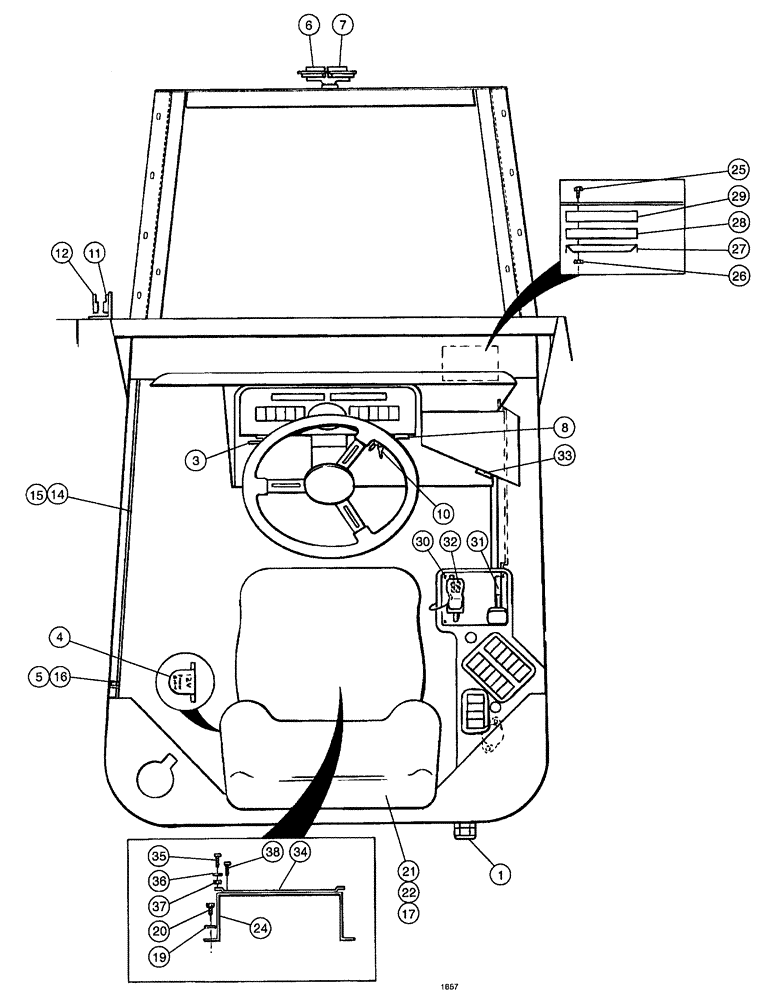

Запчасти Case IH SPX4260 (004) - CONTROLS, ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

BN66132

GROMMET

BAT.-strain relief

1шт.

3

BN63712

FLASHER SWITCH

Dual rate w/handle

1шт.

4

BN67965

POWER SOCKET

Assy, Outlet w/End

1шт.

5

BN67968

SWITCH

Door (Dome Light)

1шт.

+

BN50975

NUT

#8-32 (Steel)

2шт.

Indicates associated part

1шт.

+

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

2шт.

Indicates associated part

1шт.

6

BN68784

HORN

12V Hi Tone (Sealed)

1шт.

7

BN68785

HORN

12V Low Tone (Sealed)

1шт.

+

BN52338

NUT

6M X 1M HH PL8.8

2шт.

Indicates associated part

1шт.

+

BN68786

SUPPORT

Dual horns

1шт.

Indicates associated part

1шт.

+

BN68787

WIRE HARNESS

Dual horns

1шт.

Indicates associated part

1шт.

8

BN319663

BUZZER

Chime Tone

1шт.

10

334554A1

SWITCH

ignition, with 2 keys

1шт.

*+

BN196-48-31C2

KEY, IGNITION

2-Case logo

1шт.

Indicates associated part, *Part available only through Case's North American Parts Organization (NAPO).

1шт.

11

BN68182

ACTUATOR

Magnetic, 12V

1шт.

+

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5, PL

2шт.

Indicates associated part

1шт.

+

BN68261

WASHER

#4, Flat, G5, PL

2шт.

Indicates associated part

1шт.

+

BN50125

NUT

4-40, HH, G5, Plated

2шт.

Indicates associated part

1шт.

12

BN68183

ACTUATOR

Magnet

1шт.

+

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5, PL

2шт.

Indicates associated part

1шт.

+

BN68261

WASHER

#4, Flat, G5, PL

2шт.

Indicates associated part

1шт.

+

BN50125

NUT

4-40, HH, G5, Plated

2шт.

Indicates associated part

1шт.

14

BN52047

SCREW,Phil Pan Hd, #8 x 3/4", SST

#8 x 3/4 SS, PH, Phillip

4шт.

15

BN67371

STRIP

Door Stop

1шт.

16

BN69132

EXTENSION

Switch, Domelight

1шт.

17

BN29361

SAFETY BELT

Retractable BL

1шт.

18

BN50141

WASHER

5/16, FW, G5

4шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

20

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

6шт.

21

BN68850

SET OF BELTS,14.00" L

2, Set

1шт.

22

BN309290

SEAT ASSY.

suspension air

1шт.

BN301702

SHOCK ABSORBER

Seat

1шт.

Indicates service parts for above ref. number

1шт.

BN301703

ARMREST

Package, Gray

1шт.

Indicates service parts for above ref. number

1шт.

BN303238

HANDLE

height adjust

1шт.

Indicates service parts for above ref. number

1шт.

24

BN69009

BRACKET

seat mount

1шт.

25

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

26

BN55360

LOCK NUT

5/16"-18, NLN, G5

2шт.

27

BN68264

COVER

14GA HRS 6.25 X 8.5

1шт.

28

BN68265

RUBBER SEAL

rubber 1 x 5 x 7

1шт.

29

BN68266

RUBBER SEAL

1 x 5 x 7

1шт.

30

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

31

CONTROL-THROTTLE (See Figure 6)

1шт.

32

CONTROL HANDLE ASSY (See Figure 324)

1шт.

33

BN16018

ALARM

Low Hopper

1шт.

34

BN309560

BRACKET

seat mount

1шт.

35

BN50367

BOLT

3/8"-16 x 1", G5

4шт.

36

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

8шт.

37

BN50061

LOCK NUT

3/8"-16, G5

4шт.

38

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.
