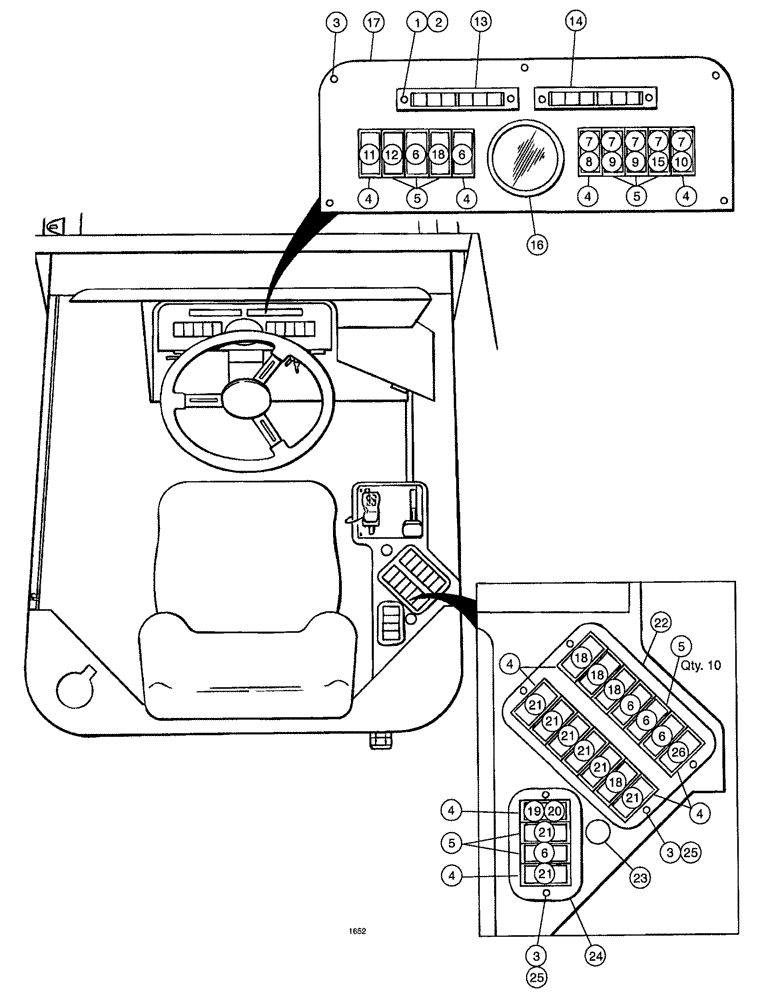

Запчасти Case IH SPX4260 (002) - CONTROL PANELS (55) - ELECTRICAL SYSTEMS

1

BN50795

NUT

hex, #8-32 (Steel)

4шт.

2

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

4шт.

3

BN52047

SCREW,Phil Pan Hd, #8 x 3/4", SST

#8 x 3/4 SS, PH, Phillip

11шт.

4

BN65931

PANEL

Switch Mount, End

10шт.

5

BN65932

PANEL

Switch Mount, Middle

16шт.

6

BN65933

PLUG

Switch Mount Panel

6шт.

7

BN65934

SWITCH

Single Pole, On-Off

5шт.

8

BN65935

LIGHT SWITCH

Actuator (Road lights)

1шт.

9

BN65936

ROCKER

Actuator - Floodlight Switch

2шт.

10

BN65937

ROCKER

Actuator - Domelight Switch

1шт.

11

BN311377

SWITCH

assembly, park brake

1шт.

12

BN65940

SWITCH

W/Handle Off-On-On (Wiper)

1шт.

13

BN65943

INDICATOR LIGHT

Cluster, LH (6)

1шт.

BN301816

BULB

12V

6шт.

Indicates service parts for above ref. number

1шт.

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

Indicates service parts for above ref. number

1шт.

14

BN65944

INDICATOR LIGHT

Cluster, RH (6)

1шт.

BN301816

BULB

12V

6шт.

Indicates service parts for above ref. number

1шт.

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

Indicates service parts for above ref. number

1шт.

15

BN65943

INDICATOR LIGHT

Hazard Warning

1шт.

16

BN67305

TACHOMETER

0-4000

1шт.

BN301813

BULB

12 V

1шт.

Indicates service parts for above ref. number

1шт.

BN301814

SOCKET

Light

1шт.

Indicates service parts for above ref. number

1шт.

BN301815

LIGHT

Filter, Lamp, Green

1шт.

Indicates service parts for above ref. number

1шт.

17

BN68649

INSTRUMENT PANEL

Dash

1шт.

18

BN65934

SWITCH

Single Pole, On-Off

5шт.

Boom Shutoff

1шт.

+

BN65938

ROCKER

Actuator - Switch

3шт.

Indicates associated part

1шт.

Boom Shutoff

1шт.

19

BN65934

SWITCH

Single Pole, On-Off

1шт.

Liquid Pump

1шт.

20

BN65938

ROCKER

Actuator - Switch

1шт.

Liquid Pump

1шт.

21

BN65942

SWITCH

W/Handle On-Off-On

8шт.

Inner-Outer Boom Fold, Boom Height Sparge, Axle Adj.

1шт.

+

BN302318

TOOL

Switch Removal

1шт.

Indicates associated part

1шт.

22

BN310117

PLATE

Mount

1шт.

23

BN309322

CONTROL

Foam Marker

1шт.

See Fig. 325

1шт.

24

BN66267

PLATE

Mount, 14 GA Hrs, 3.37 x 5.62

1шт.

25

BN67971

FASTENER

#8 Tinnerman

6шт.

26

BN306319

SWITCH

Carling, On Off On, Fence Row

1шт.
