(083) - A/C COMPRESSOR PACKAGE

Запчасти Case IH SPX4260 (083) - A/C COMPRESSOR PACKAGE (50) - CAB CLIMATE CONTROL

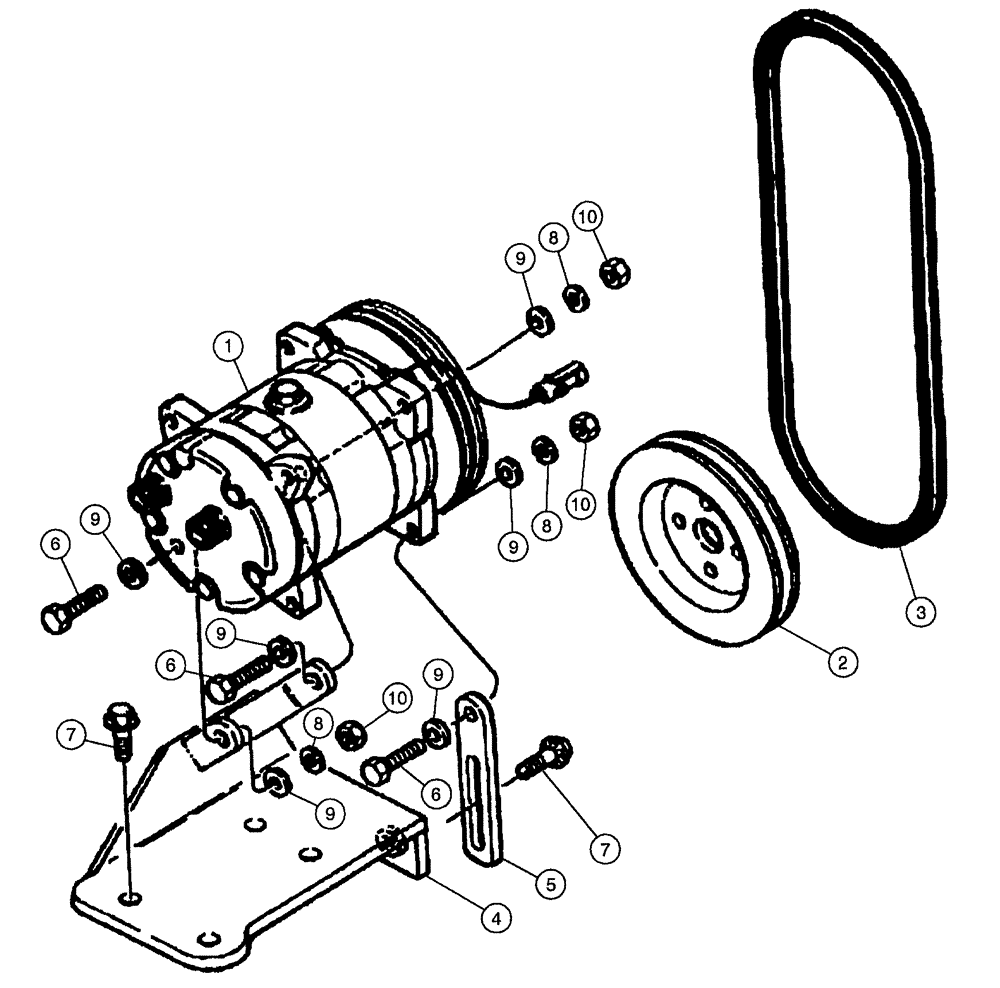

Схема запчастей Case IH SPX4260 - (083) - A/C COMPRESSOR PACKAGE (50) - CAB CLIMATE CONTROL
9
6
5
9
10
8
9
9
1
9
6
3
2
8
7
9
4
8
10
6
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1999755C2

COMPRESSOR

Assembly

1шт.

1

86993462R

REMAN-COMPRESSOR

SPX4260 SPX-SERIES (4/99-11/01); Reman For New P/N 1999755C2

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

2

J919624

PULLEY

Compressor Drive, Years: -01-SEP-09

1шт.

2

84167711

PULLEY,179.56mm OD

Compressor Drive, Start Year: 01-SEP-09

1шт.

3

A184652

V-BELT,12.70 mm W x 1017.00 mm L

Compressor Drive

1шт.

4

237872A2

SUPPORT

BRACKET compressor

1шт.

5

84716C1

SUPPORT

Strap, Adjusting Compressor

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

7

905-10025

BOLT,Hex Flg, M10 x 25mm

5шт.

8

892-11010

LOCK WASHER,M10

3шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.
