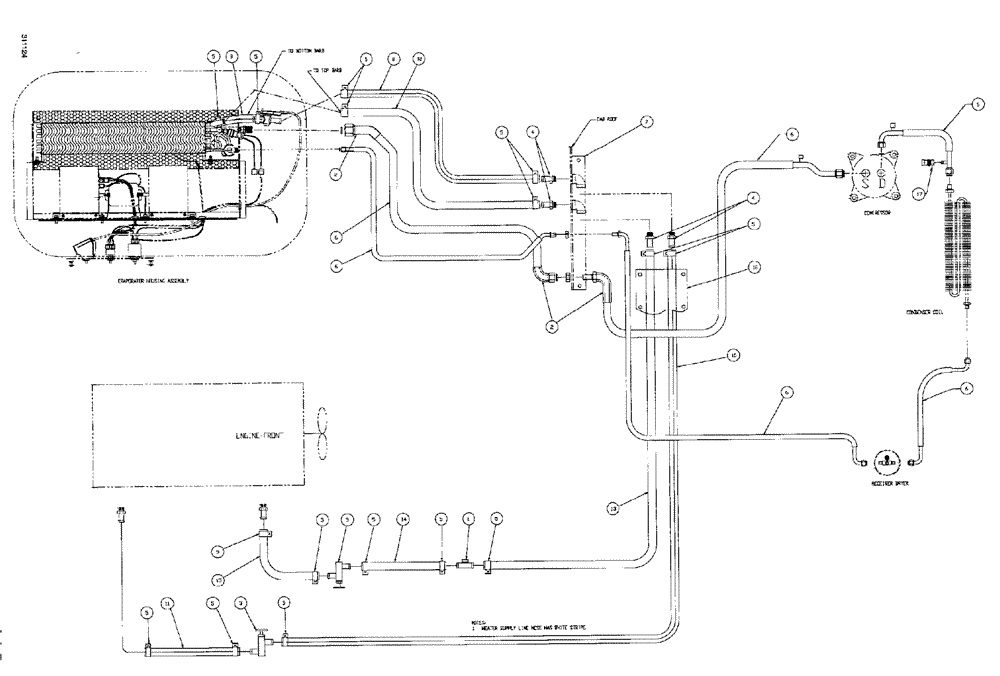

Запчасти Case IH SPX4260 (022) - A/C HOSE PACKAGE (50) - CAB CLIMATE CONTROL

1

BN29908

TEE

5/8" Flushing, Heater Hose

1шт.

2

BN306271

TAPE

tar 10"

3шт.

3

BN303666

VALVE

shutt-off

2шт.

*4

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

4шт.

*5

1954736C1

HOSE CLAMP,#24

16шт.

6

NSS

NOT SOLD SEPARAT

PACKAGE HOSE-AIR COND.

1шт.

See Fig. 24

1шт.

7

BN312080

COVER

Hose, w/hardware

1шт.

8

BN306812

HOSE,0.63" ID

x 6"

1шт.

9

BN67789

HEATER HOSE,0.625" ID

Supply

1шт.

10

BN312021

HOSE

HTR,5/8" ID/282" return

1шт.

11

BN312078

HEATER HOSE

5/8" ID x 24" Supply

1шт.

12

BN67788

HEATER HOSE,0.625" ID

Return

1шт.

13

BN312020

HOSE

HTR,5/8" ID/271" supply

1шт.

14

BN312079

HEATER HOSE,0.625" ID x 3.00"

Return

1шт.

15

BN312077

HEATER HOSE,0.625" ID x 12.00"

Return

1шт.

16

BN312081

COVER

enclosure, hose with hardware

1шт.

BN67233

COVER

Enclosure

1шт.

Indicates parts of an assembly

1шт.

BN68503

SCREW,Hex, Slotted, 1/4" x 1/2"

SL hex HD 1/4 x 1/2

10шт.

Indicates parts of an assembly

1шт.

*17

87000227

SWITCH, A/C HIGH PRE

High N.C.

1шт.
