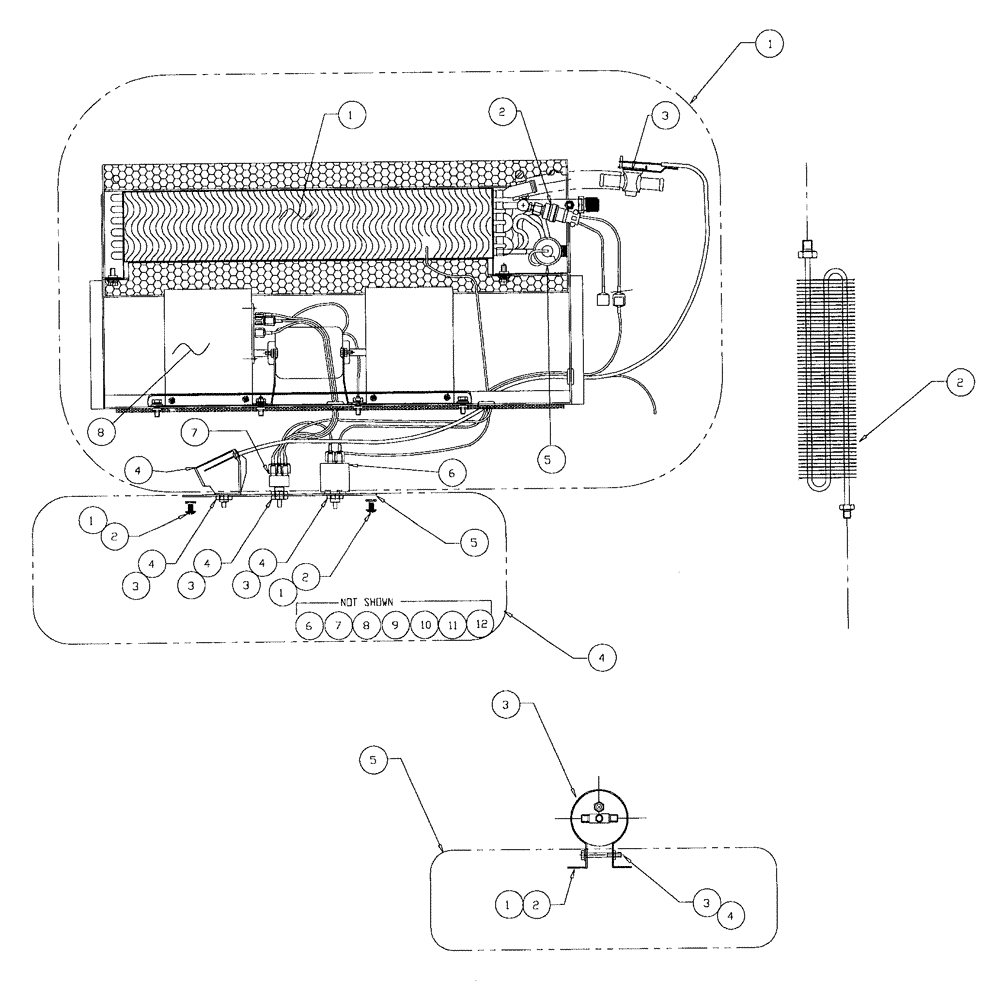

Запчасти Case IH SPX4260 (020) - A/C PACKAGE (50) - CAB CLIMATE CONTROL

1

BN311013

HOUSING ASSY.

evaporator

1шт.

See Refs. 1 - 8 below

1шт.

*+

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

Indicates associated part, *Part available only through Case's North American Parts Organization (NAPO).

1шт.

2

BN67785

CONDENSER

Coil

1шт.

+

BN304862

MOUNTING PARTS

Condensor-A/C

1шт.

Indicates associated part

1шт.

+

BN300496

WASHER

M6, Flat, 10.9

16шт.

Indicates associated part

1шт.

+

BN300497

WASHER,M8, 10.9

8шт.

Indicates associated part

1шт.

+

BN301010

BOLT,Hex, M6 x 10, 10.9, Full Thd

8шт.

Indicates associated part

1шт.

+

BN304417

NUT

M6-1, NLN, 10.9

8шт.

Indicates associated part

1шт.

+

86528579

NUT,M8 x 1.25

4шт.

Indicates associated part

1шт.

3

BN67797

RECEIVER-DRYER

1шт.

+

BN50061

LOCK NUT

3/8"-16, G5

2шт.

Indicates associated part

1шт.

+

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

Indicates associated part

1шт.

+

BN50367

BOLT

3/8"-16 x 1", G5

1шт.

Indicates associated part

1шт.

4

BN311014

PACKAGE

parts, louver & misc.

1шт.

See Refs. 1 - 12 below

1шт.

5

BN311024

PACKAGE

parts, dryer

1шт.

See Refs. 1 - 4 below

1шт.

1a

NS

NOT SERVICED

EVAPORATOR HOUSING ASSEMBLY

1шт.

1

BN311015

EVAPORATOR

coil, heater

1шт.

2

BN69702

PRESSURE SWITCH

Low

1шт.

3

BN69708

VALVE

Water, Inline

1шт.

4

BN311016

CABLE

assembly, push pull

1шт.

5

BN69872

VALVE, THERMAL EXPAN,Air Conditioing

Expansion

1шт.

6

BN69703

SWITCH

Cold Control

1шт.

7

73107110

BLOWER SWITCH

3 Speed

1шт.

8

BN69704

BLOWER

12V

1шт.

1b

NS

NOT SERVICED

PARTS PKG.-LOUVER & MISC.

1шт.

1

BN311017

LOCK WASHER

external tooth, 1/4

4шт.

2

BN67736

BOLT

1/4-20 x .50 TH

4шт.

3

BN67731

NUT

control mounting

3шт.

4

BN67740

KNOB

control

3шт.

5

BN311018

PLATE

control, with decal

1шт.

6

BN311023

VENT

louver, 4" dia., with wire clip

5шт.

7

BN67735

VENT

LOUVER 1 1/4 X 4 1/2 RECT

4шт.

8

BN67734

VENT

LOUVER W/ hose adapter

2шт.

9

BN67732

VENT

LOUVER 3" DIA flat

2шт.

10

BN67795

HOSE

2шт.

11

BN306271

TAPE

tar 10"

3шт.

12

BN67796

TUBE

DRAIN poly loom

3шт.

1c

NS

NOT SERVICED

PARTS PKG. DRYER

1шт.

1

DECAL-charge W/134A GAS

1шт.

See Fig. 269

1шт.

2

BN67726

CLAMP

receiver dryer

1шт.

3

BN67738

CAPSCREW

1/4-20 x 2.00

1шт.

4

BN67739

WASHER

flat 1/4

1шт.
