Запчасти Case IH SPX4260 (096) - STRUT ASSEMBLY RH (48) - TRACKS & TRACK SUSPENSION

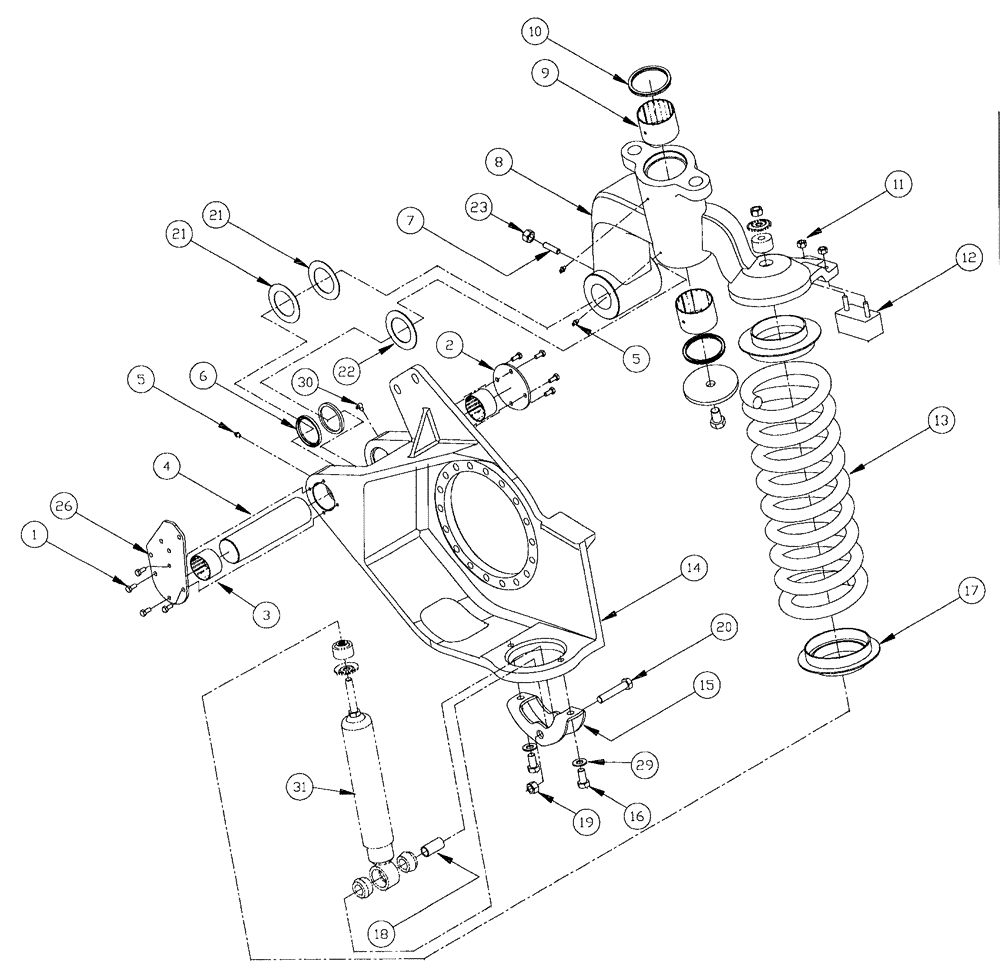

Схема запчастей Case IH SPX4260 - (096) - STRUT ASSEMBLY RH (48) - TRACKS & TRACK SUSPENSION
6
15
30
11
2
7
23
17
20
19
12
3
4
5
9
16
10
18
22
21
29
13
8
1
31
5
26
21
14

Артикул

Название

Примечание

Количество

1

80043233

SCREW

Hex, M8 x 20, 10.9

8шт.

2

BN302045

CAP

1шт.

3

87266251

BEARING LINER

Garlock

2шт.

4

BN302046

SHAFT

Lower, Strut

1шт.

5

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

3шт.

6

BN302044

SEAL,63.5mm ID x 76.2mm OD x 6.35mm Thk

lower

2шт.

7

BN321041

SET SCREW

M12 x 55, 1.75 Cup Point

1шт.

8

BN300990

ARM ASSY.

Suspepnsion Upper RH

1шт.

9

BN302041

SLEEVE

Bearing

2шт.

10

BN302040

SEAL

2шт.

11

BN305104

FLANGE NUT

3/8-16, FLN, G8

2шт.

12

BN306889

BUMPER

jounce

1шт.

13

BN316579

COIL SPRING

Suspension

1шт.

14

BN300992

HOUSING

Trailing Link, RH

1шт.

15

BN302031

MOUNTING PARTS

Shock, Lower

1шт.

16

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

17

BN316108

GUIDE

Adaptor, Spring

2шт.

18

87269215

SPACER

Shock, Suspension

1шт.

19

380424

NUT,M20 x 2.5, Cl 8

1шт.

20

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

21

BN302047

SHIM,64mm ID x 98.3mm OD x 1.44mm Thk

Machine Bushing, Wide, 2.5" id x 3.87" od x 18 ga

2шт.

22

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

3.88" od x 2.52 id x 14 GA

1шт.

23

BN300509

NUT,M12 x 1.75, Cl 8

1шт.

26

BN306819

CAP

dust suspension

1шт.

29

BN300501

WASHER

M16, FW, 10.9

2шт.

30

BN304600

NIPPLE, LUBE

NIPPLE M8 x 1 x 90

1шт.

31

BN321950

SHOCK ABSORBER

Arvin # 675601-40G

1шт.

+

BN313204

SPRING WASHER

hardened, 5/8

1шт.

Indicates associated part

1шт.

+

329-1510

JAM NUT,Jam, 5/8"-18, G8

2шт.

Indicates associated part

1шт.

Выбрано товаров: 31
