Запчасти Case IH SPX4260 (010) - STEERING ASSEMBLY (41) - STEERING

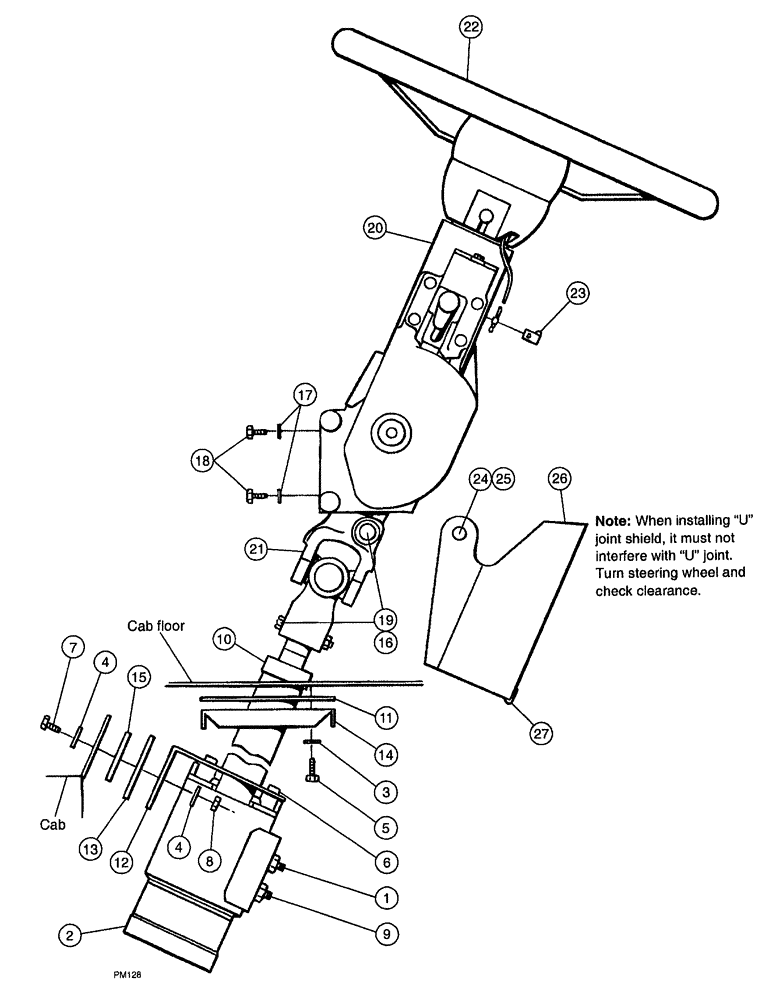

Схема запчастей Case IH SPX4260 - (010) - STEERING ASSEMBLY (41) - STEERING
5
24
2
20
9
25
7
1
8
4
21
27
22
23
10
11
14
6
13
15
18
17
12
16
19
26
3
4

Артикул

Название

Примечание

Количество

1

6MOR-8MB (TO STEER CYLINDER) (See Figure 169)

3шт.

2

BN323173

VALVE

Orbitrol, Steering 11.3

1шт.

3

BN50141

WASHER

5/16, FW, G5

4шт.

4

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

5

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

7

50304

BOLT Hex, 1/2"-20 x 1 1/2", G5, Full Thd

2шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

VALVE-CHK.-8 MORB/-6MORS (PRESSURE & RETURN) (See Figure 169)

1шт.

10

BN65948

STEERING COLUMN

18"

1шт.

11

BN66268

RUBBER SEAL

RUBBER SEAL 1/8" EPDM 5 x 6

1шт.

12

BN66273

MOUNTING PARTS

1/4 HRS 6.87 x 8

1шт.

13

BN66274

RUBBER SEAL

1/4 EPDM, 2.5 x 8

1шт.

14

BN66276

MOUNTING PARTS

14 GA HRS 6.25 x 7.25

1шт.

15

BN69007

SPACER

Plate

1шт.

16

BN50131

LOCK NUT

3/8-16, CTR, PL

2шт.

17

BN50145

WASHER

3/8, G5

4шт.

18

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

4шт.

19

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

20

BN66111

STEERING COLUMN

tilt/TELE

1шт.

21

BN66112

UNIVERSAL JOINT

COLUMN steering

1шт.

22

BN310333

CAP

steering wheel, black

1шт.

BN67057

STEERING WHEEL

3 Spoke, 16"

1шт.

Indicates parts of an assembly

1шт.

BN98904

ELECTRICAL WIRE

WIRE horn

1шт.

Indicates service parts for above ref. number

1шт.

23

BN68814

CLAMP

Vinyl, 1/8" Dia.

1шт.

24

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

2шт.

25

BN50209

BOLT

1/4"-20 x .5, HH, 5, PL

2шт.

26

BN66265

SHIELD

16 GA Hrs, 6.75 x 13

1шт.

27

BN69875

SEAL

clip on

1шт.

Выбрано товаров: 31
