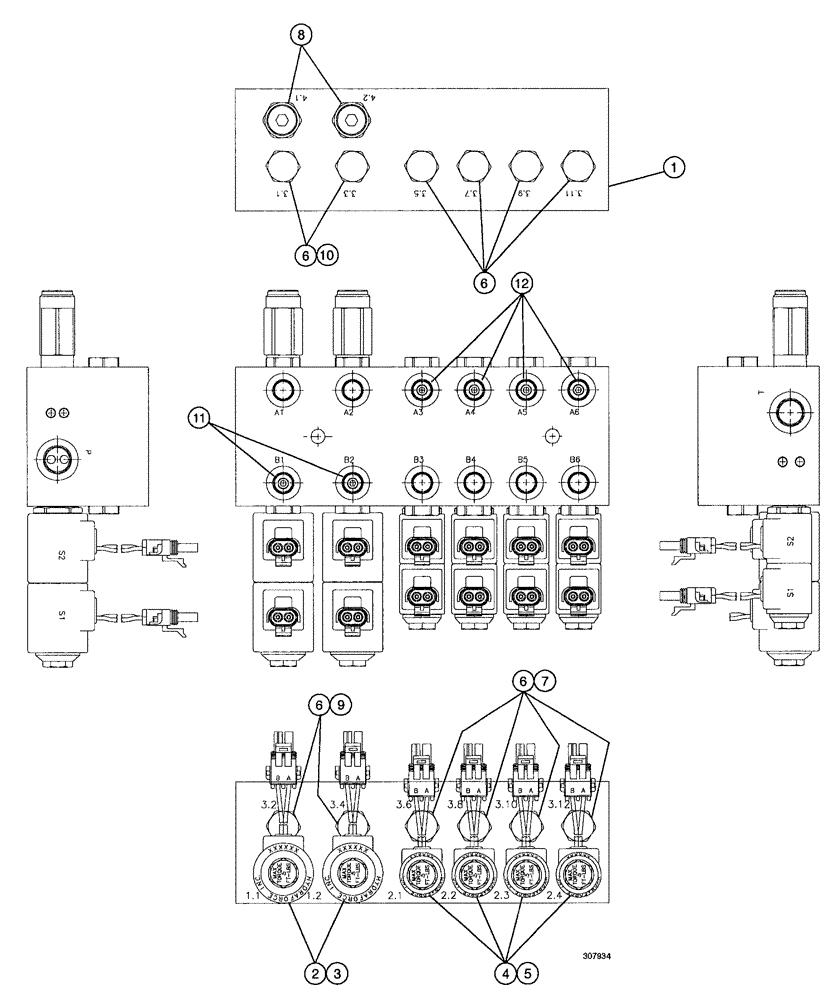

Запчасти Case IH SPX4260 (190) - 6 BANK BOOM CONTROL ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

BN307934

PACKAGE

6 Bank Boom Control

1шт.

2

BN311928

VALVE

Solenoid, #10, 3 POS 4 Way SV10-47D-0-N-00

2шт.

BN311937

KIT

Service, SK10-4N-MMM

2шт.

Indicates service parts for above ref. number

1шт.

3

BN311929

COIL

#10, 12V DC With Weatherpack

4шт.

BN16197

CONNECTOR, ELEC

CONNECTOR weatherpack

4шт.

Indicates service parts for above ref. number

1шт.

BN16056

SEAL

Packard Plug

8шт.

Indicates service parts for above ref. number

1шт.

4

BN311930

VALVE

Solenoid, #8 3 Position 4 Way, Float Center

4шт.

BN311938

KIT

Service, SK08-4N-MMM

4шт.

Indicates service parts for above ref. number

1шт.

5

BN311931

VALVE

#8 Coil, 12V DC With Weatherpack

8шт.

BN16197

CONNECTOR, ELEC

CONNECTOR weatherpack

8шт.

Indicates service parts for above ref. number

1шт.

BN16056

SEAL

Packard Plug

16шт.

Indicates service parts for above ref. number

1шт.

6

BN311932

VALVE

#8 Check, 200 psi

12шт.

BN311939

KIT

Service, SK08-2N-T

12шт.

Indicates service parts for above ref. number

1шт.

7

BN311953

PISTON

#8 Single Pilot

2шт.

8

BN311954

VALVE

#8 relief DIFF. AERA 200 PSI

2шт.

BN311939

KIT

Service, SK08-2N-T

2шт.

Indicates service parts for above ref. number

1шт.

9

BN311933

PISTON

#8 Double Pilot

4шт.

10

BN311956

DISC

#8 heavy duty orifice .060 DIA.

2шт.

11

BN311957

PLUG

orifice, 1/16 NPT x .070 DIA.

2шт.

12

BN311958

PLUG

orifice, 1/16 NPT x .045 DIA.

4шт.
