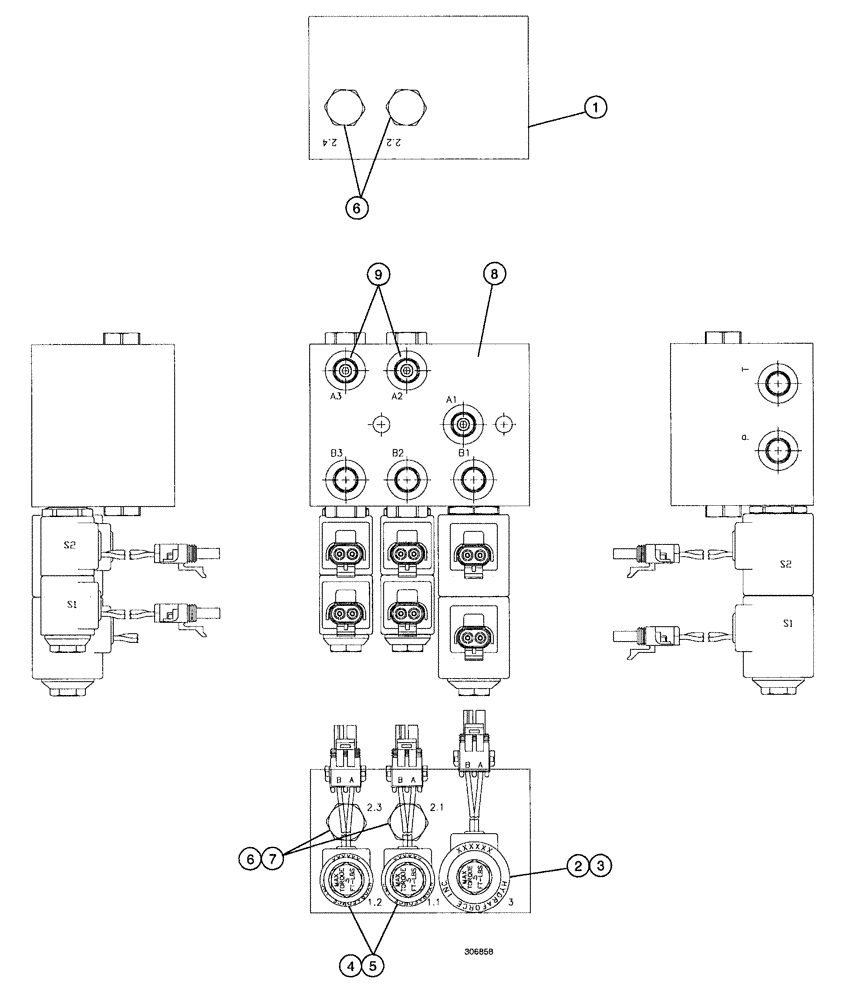

Запчасти Case IH SPX4260 (188) - 3 BANK AXLE TRACK ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

BN311927

BODY

3 bank axle track

1шт.

2

BN311928

VALVE

Solenoid, #10, 3 POS 4 Way SV10-47D-0-N-00

1шт.

BN311937

KIT

Service, SK10-4N-MMM

1шт.

Indicates service parts for above ref. number

1шт.

3

BN311929

COIL

#10, 12V DC With Weatherpack

2шт.

BN16197

CONNECTOR, ELEC

CONNECTOR weatherpack

2шт.

Indicates service parts for above ref. number

1шт.

BN16056

SEAL

Packard Plug

4шт.

Indicates service parts for above ref. number

1шт.

4

BN311930

VALVE

Solenoid, #8 3 Position 4 Way, Float Center

2шт.

BN311938

KIT

Service, SK08-4N-MMM

2шт.

Indicates service parts for above ref. number

1шт.

5

BN311931

VALVE

#8 Coil, 12V DC With Weatherpack

4шт.

BN16055

CONNECTOR, ELEC

CONNECTOR 3 Way Shroud Packard

4шт.

Indicates service parts for above ref. number

1шт.

BN16056

SEAL

Packard Plug

8шт.

Indicates service parts for above ref. number

1шт.

6

BN311932

VALVE

#8 Check, 200 psi

4шт.

BN311939

KIT

Service, SK08-2N-T

6шт.

Indicates service parts for above ref. number

1шт.

7

BN311933

PISTON

#8 Double Pilot

2шт.

8

BN311934

PLUG

orifice, 1/16 NPT x .060 DIA.

1шт.

9

BN311936

PLUG

orifice, 1/16 NPT x .045 DIA.

2шт.
