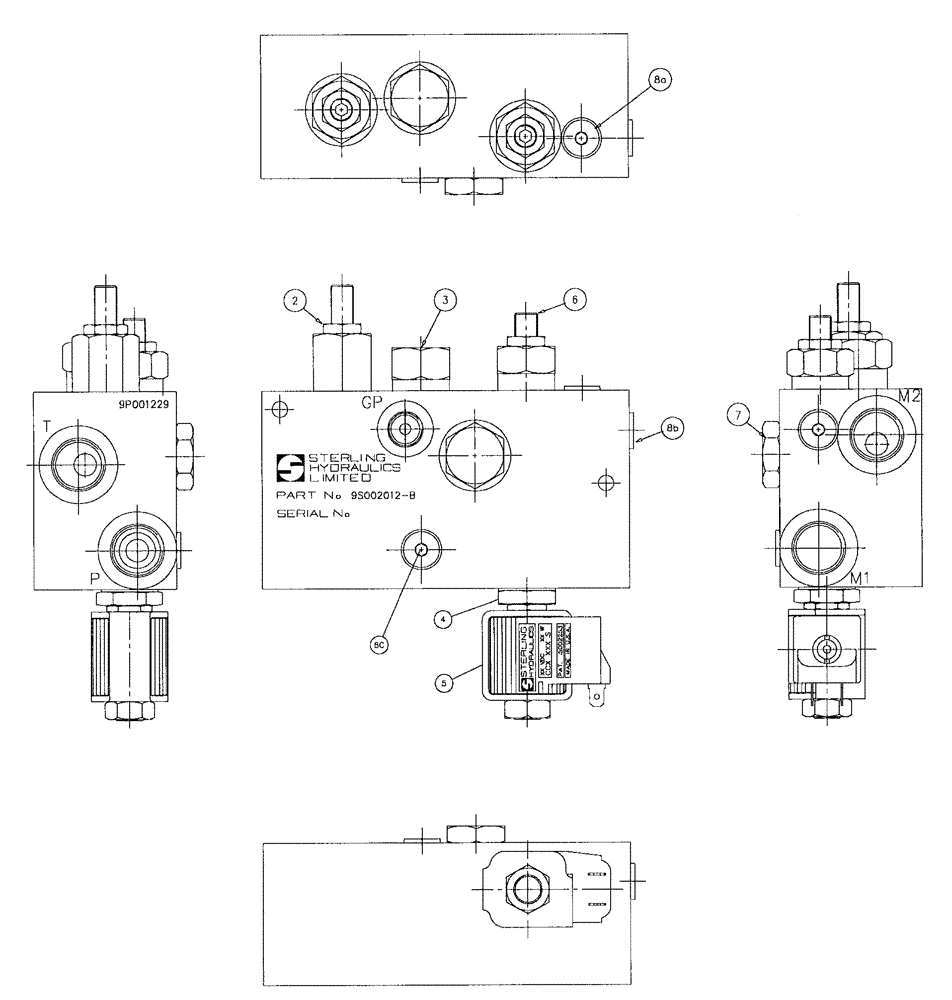

Запчасти Case IH SPX4260 (184) - DUMP / FLOW CONTROL VALVE (35) - HYDRAULIC SYSTEMS

0

BN314651

BLOCK

M/C

1шт.

2

BN314652

VALVE

relief

1шт.

BN300316

SEAL KIT

For BN300305

1шт.

Indicates service parts for above ref. number

1шт.

3

BN314653

VALVE

by-pass compensator

1шт.

BN314654

SEAL ASSY.

kit

1шт.

Indicates service parts for above ref. number

1шт.

4

BN314655

VALVE

2/2 way solenoid

1шт.

BN300316

SEAL KIT

For BN314655

1шт.

Indicates service parts for above ref. number

1шт.

5

BN314656

SOLENOID

1шт.

6

BN314657

VALVE

needle

1шт.

BN300316

SEAL KIT

For BN300305

1шт.

Indicates service parts for above ref. number

1шт.

7

BN314658

CHECK VALVE

1шт.

BN314659

KIT

seal

1шт.

Indicates service parts for above ref. number

1шт.

8

BN314660

PLUG

zero leak hollow hex

3шт.
