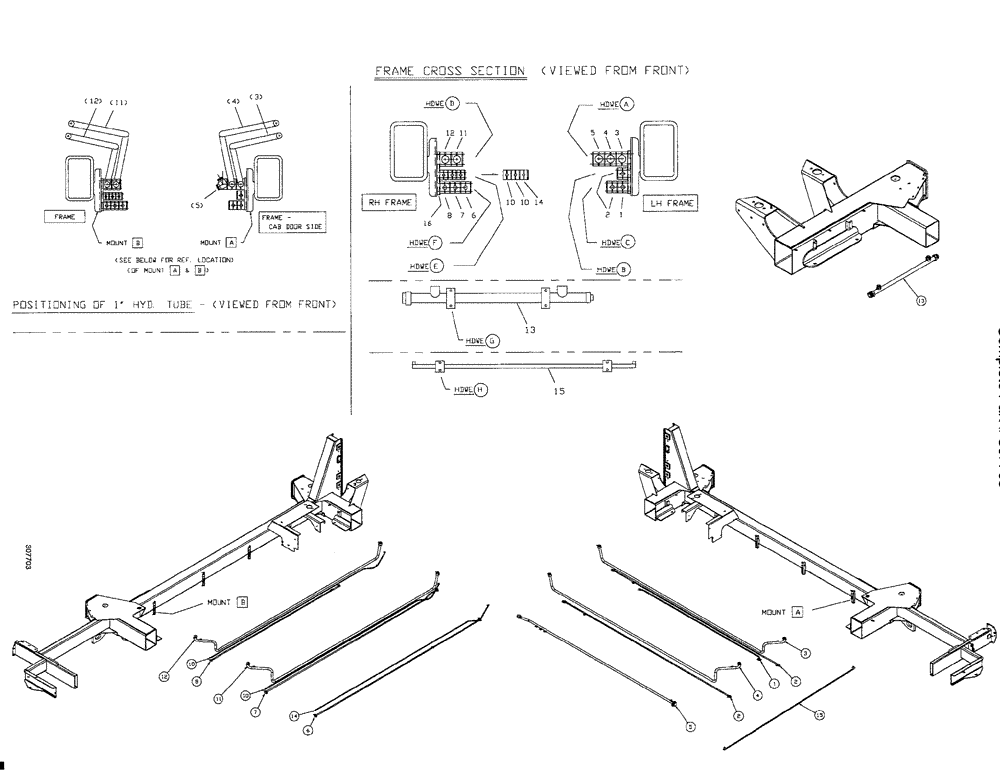

Запчасти Case IH SPX4260 (180) - STEEL TUBE GROUP (35) - HYDRAULIC SYSTEMS

1

BN305996

TUBE

SIR & DYN brake PRS

1шт.

2

BN306004

TUBE

axle adjust

2шт.

3

86556136

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

3

BN325885

TUBE

Drive Pressure, LH

1шт.

4

BN325886

TUBE

Drive Pressure, LH

1шт.

5

BN305995

TUBE

case drain & return

1шт.

6

BN306000

TUBE

parking brake

1шт.

7

BN306003

TUBE

Motor Servo Control

1шт.

8

BN305997

TUBE

steering return

1шт.

10

BN305999

TUBE

fuel line

2шт.

11

BN305991

TUBE

drive pressure RH-A

1шт.

12

BN325884

TUBE

Drive Pressure, RH

1шт.

13

BN306750

TUBE

return manifold

1шт.

14

BN309602

BRAKE LINE

Return

1шт.

15

BN312887

TUBE

HYD., front, steer

1шт.

16

BN313247

RAIL

C, std duty

8шт.

17

BN307078

CLAMP

pair-3/8 tube

12шт.

18

BN307079

PLATE

top, clamp -3/8" tube

4шт.

19

BN307080

CLAMP

pair -1" tube

20шт.

20

BN307081

PLATE

top, clamp -1" tube

8шт.

21

BN307082

CLAMP

pair 1.25" tube

2шт.

22

BN307083

PLATE

top, clamp -1.25" tube

2шт.

28

BN313265

PLATE

Safety -1" tube

12шт.

29

BN313261

BOLT

Stacking 1/4"-20 x 1.12

24шт.

30

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

40шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

31

BN313262

NUT

c-rail (1/4" -20)

48шт.

32

BN29783

CLAMP

Single, 1/2" Tube

26шт.

33

BN29785

PLATE

Cover, Single, 1/2" Tube

14шт.

34

BN313264

PLATE

safety -1/2" tube

12шт.

35

BN313261

BOLT

Stacking 1/4"-20 x 1.12

24шт.

36

BN313263

PLATE

safety -3/8" tube

8шт.

37

BN313259

BOLT

stacking (1/4" -20)

16шт.

38

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

39

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

8шт.

40

BN304417

NUT

M6-1, NLN, 10.9

12шт.
